New Mini-Circuits Model Alert: 5 Benchtop Switch Modules up to 67 GHz Now Available

DC TO 67 GHz

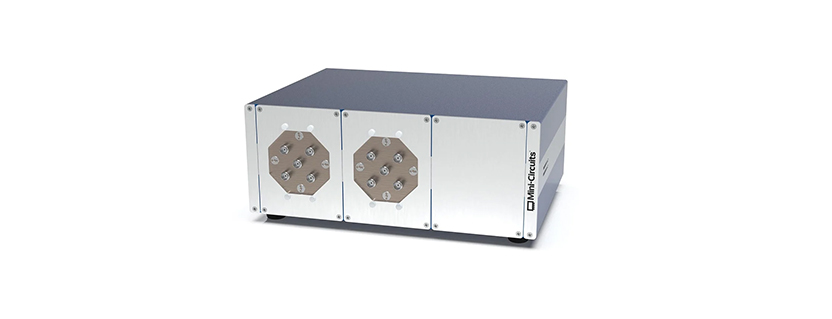

Mechanical Switch Assemblies Up to 67 GHz

5 New Switch Modules Released: SPDT up to SP8T

Mini-Circuits’ RCMX Series Mechanical Switch Assemblies contains pairs of latching electro-mechanical SPDT to SP8T switches operating over a wide bandwidth from DC up to 67 GHz with high isolation and low insertion loss. Each switch is absorptive / internally terminated with a break-before-make configuration and a typical lifetime of 2 million switching cycles. The switches are housed in a compact benchtop package with all RF connectors on the front. The switch assembly can be controlled via USB or Ethernet (supporting SSH, HTTP, and Telnet network protocols). Full software support is provided, including our user-friendly GUI application for Windows and a full API with programming instructions for Windows and Linux environments. The modular design of the RCMX series supports easy field maintenance without needing to return to a Mini-Circuits facility.

View RCM-Series

Key Features:

• Mechanical SPDT, SP4T, SP6T & SP8T Absorptive Switches
• Latching Switches with Excellent Performance up to 67 GHz
• High Reliability, Millions of Cycles
• Compact Benchtop Package with Power Supply
• Software Control & Automation

RCM-Series Switch Modules

Model Name RCMX-2SP4T-E53 Description USB & Ethernet 2x SP4T Benchtop Switch Module, 2.4mm, 50Ω F Low DC F High 52.5 GHz

RCMX-2SP6T-E67 USB & Ethernet 2x SP6T Benchtop Switch Module, 1.85mm, 50Ω DC 67 GHz

RCMX-2SP8T-E33 USB & Ethernet 2x SP8T Benchtop Switch Module, 2.92mm, 50Ω DC 32.5 GHz

RCMX-2SP8T-E43 USB & Ethernet 2x SP8T Benchtop Switch Module, 2.92mm, 50Ω DC 42.5 GHz

RCMX-301 USB & Ethernet 2 x SP8T + 2 x SPDT Benchtop Switch Module, 2.92mm, 50Ω DC 32.5 GHz

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Mini-Circuits
