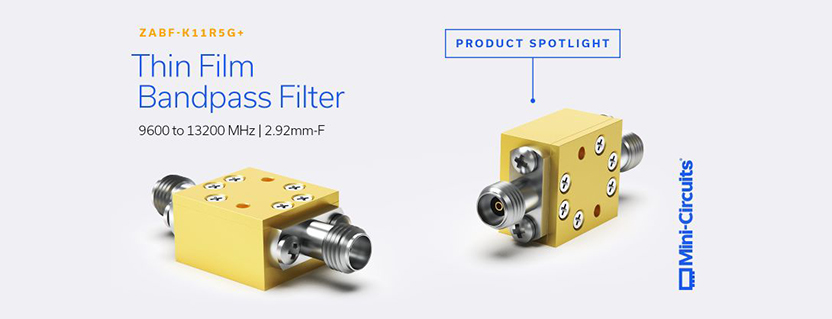

Mini-Circuits ZABF-K11R5G+

Thin Film Bandpass Filter, 9600 to 13200 MHz, 50Ω, 2.92 mm Female

Connector Type: 2.92mm

KEY FEATURES

• Low Passband Insertion Loss 2.5 dB Typ.
• High Rejection 45 dB Typ.
• Small Size

APPLICATIONS

• Ku Band
• Vsat

PRODUCT OVERVIEW

Mini-Circuits’ Connectorized Thin-Film filters offer low insertion loss and high rejection realized via Thin-Film on Alumina substrate, using a sputtering process that can guarantee an enhanced Q and repeatable performance. Low pass, high pass, and bandpass connectorized thin-film designs can be realized with this technology up to 40 GHz in a small form factor helping customers achieve their SWaP objectives. Using our high quality thin-film manufacturing process we can guarantee repeatability on large batches of filters.

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Mini-Circuits
