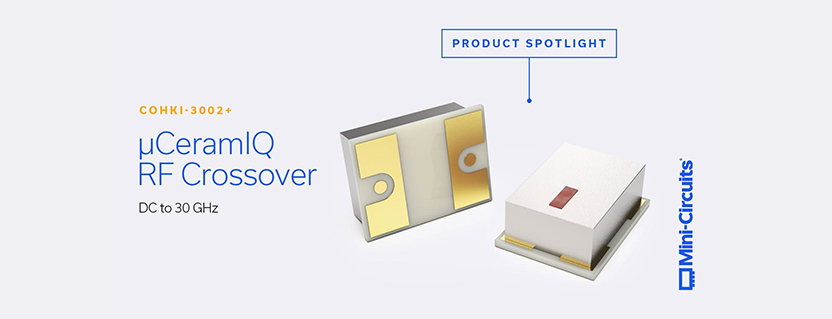

Mini-Circuits COHKI-3002+
LTCC Surface Mount RF Crossover, 50Ω, DC to 30GHz
THE BIG DEAL
- Extended Frequency Range up to 30 GHz
- Best-in-Class Wideband Performance
- Superior Isolation of 45 dB across Full Band
- Ideal for High Density RF Layouts
- 4.95 × 3.65 mm outline as drop in for BFHKI footprint
APPLICATIONS
- Test & Measurement Equipment
- Radar Systems in X, Ku and Ka-Bands
- SATCOM Payloads and Terminals
- Small Cells and Massive MIMO Radios
PRODUCT OVERVIEW
Mini-Circuits’ COHKI-3002+ is a high-performance, wideband RF crossover designed to enable the seamless routing of transmission lines without the need for additional PCB layers. Supporting operation from DC to 30 GHz, this compact surfacemount device delivers industry-leading insertion loss and isolation performance in a manufacturing-friendly form factor. Housed in a 4.95 × 3.65 mm SMT package, the crossover is footprint compatible with our BFHKI filter footprints for easy integration in compact RF front-end designs. The device is optimized for high-frequency applications where PCB real estate, performance and cost efficiencies are key considerations.
