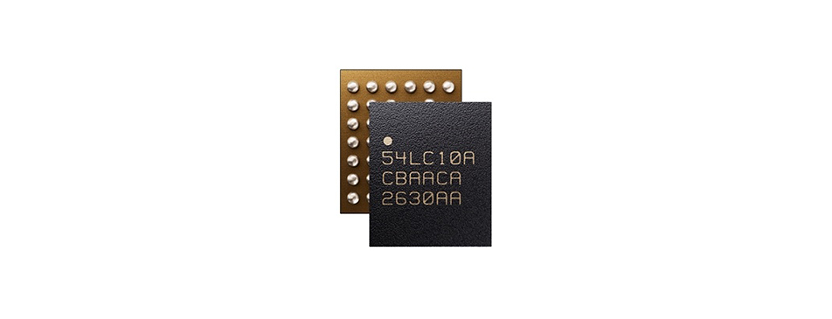

nRF54LC10A Wireless Chipset by Nordic Semiconductor

The nRF54LC10A from Nordic Semiconductor is a Wireless Chipset with Frequency 2.4 GHz, Data Rate Up to 4 Mbps, Output Power 4 dBm (Tx), Sensitivity -101 dBm (802.15.4) & -97 dBm (Bluetooth LE). More details for nRF54LC10A can be seen below.

Product Details

• Part Number: nRF54LC10A
• Manufacturer: Nordic Semiconductor
• Description: Ultra-Low-Power Wireless SoC for Bluetooth LE, Thread, Zigbee, and Matter

General Parameters

• Technology: Bluetooth, Thread, Zigbee
• Frequency: 2.4 GHz
• Bluetooth Standard: Bluetooth V6.0
• Bluetooth Low Energy: Yes
• WiFi Standard: 802.15 4
• Data Rate: Up to 4 Mbps
• Output Power: 4 dBm (Tx)
• Sensitivity: -101 dBm (802.15.4) & -97 dBm (Bluetooth LE)
• Voltage: 1.7 to 3.6 V
• Current Rx: 4 mA
• Current Tx: 5.8 to 7.6 mA
• GPIOs: Up to 31 GPIO pins
• Interface: I2C, SPI, UART
• RAM: 192 kB
• Sleep Current: 30 nA to 1.6 µA
• Dimension: 1.93 x 2.29 mm with 0.35 mm / 0.3 mm pitch (CSP) & 6 x 6 mm with 0.4 mm pitch
• Package: CSP and QFN
• Operating Temperature: -40 to 85 Degree C
• Note: Processor: 128 MHz Arm® Cortex®-M33
