RF DESIGN ZEP-F9P-SMART-1 GNSS SMART BOARD

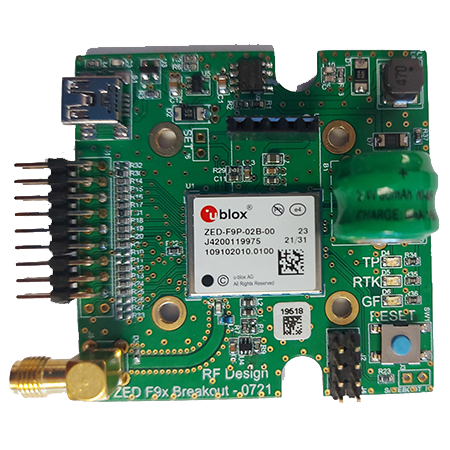

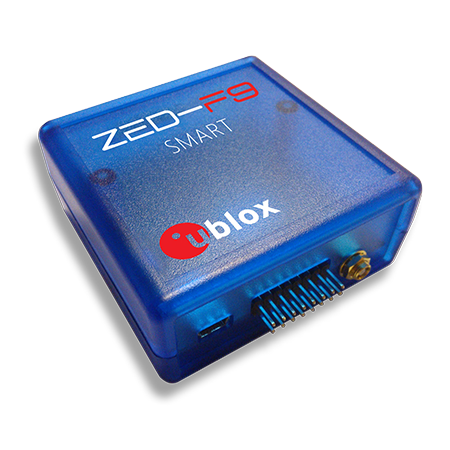

The ZED-F9 SMART evaluation board allows efficient evaluation of the u-blox F9 high precision positioning module.

SKU: ZEP-F9P-SMART-1 Categories: , Tags: , ,

Description

Product description

The ZED-F9 SMART evaluation board allows efficient evaluation of the u-blox F9 high precision positioning module. The ZED-F9 module provides multi-band GNSS positioning and comes with built-in RTK technology providing centimetre level accuracy to users. The built-in USB interface provides both power supply and high-speed data transfer and eliminates the need for an external power supply. The ZED-F9 Smart evaluation board can be used with a PDA or a notebook PC, making them the perfect companion through all stages of design-in. The ZED-F9 SMART evaluation board can be connected to an external Radio/Wi-Fi module to provide wireless connectivity capabilities for common use cases.

Features

  • Mini-USB for an easy connection to a PC
  • 20-pin connector to provide power (5 V-12 V DC), GPIO, 3.3V TTL, I2C & SPI interface
  • Three LED’s to indicate GNSS operation
  • SMA Connector for external active antenna, u-blox ANN-MB is the recommended antenna
  • Protocols: NMEA, UBX, RTCM

Highlights

  • Powered by u-blox F9 high precision GNSS module
  • Extensive visualisation & evaluation features
  • Supports NTRIP server/client RTCM correction stream & AssistNow Online Services
  • All ports accessible outside
  • USB (v2.0 compatible) available for power supply and Data Transfer
  • Easy to use

Product variants

  • ZED-F9P SMART
  • ZED-F9H SMART
  • ZED-F9T SMART
  • ZED-F9K SMART
  • ZED-F9R SMART

System Requirements

  • PC with USB Interface
  • Operating System: Windows 10 / Windows 8 (Intel Version Platform) / Windows 7
  • USB Drivers are provided with the ZED-F9 SMART Board

u-center GPS/GNSS evaluation software

ZED-F9 Installer includes u-center, which is an interactive tool for configuration, testing, visualization and data analysis of positioning chips and modules. u-center provides useful assistance during all phases of a system integration project.

Product Summary

Additional information

Weight 0.250 kg
Dimensions 6.5 × 6.5 × 3 cm
