• Application board for ZED-F9P
• Flexible connectivity options, including Wi-Fi and Bluetooth
• Arduino Mega shield connections for host expansion

Product Description

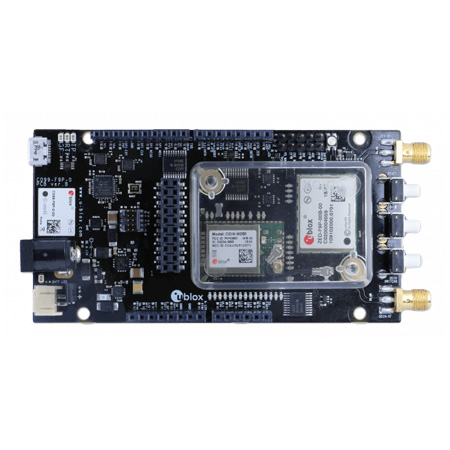

The C099-F9P application board allows efficient evaluation of ZED-F9P, the u‑blox F9 high precision positioning module. The ZED-F9P module provides multi-band GNSS positioning and comes with built-in RTK technology providing centimeter level accuracy to users. The C099-F9P application board integrates the ZED-F9P module and includes an ODIN-W2 short range module for connectivity options. The application board is designed to support evaluation of the ZED-F9P module, while the ODIN-W2 module provides wireless connectivity capabilities for common use cases. Refer to the C099-F9P User Guide for details on supported configurations. The u-center evaluation software provides a powerful platform for evaluation of u‑blox GNSS receivers. With u-center, data can be logged as well as visualized in real time. The u-center software contains an NTRIP server/client which can be used to manage the RTCM correction stream to and from a C099-F9P application board.

Kit Includes:

• 1 x application board with ZED-F9P
• 1 x active multi-band GNSS antenna
• 1 x Bluetooth / Wi-Fi antenna
• USB cable
