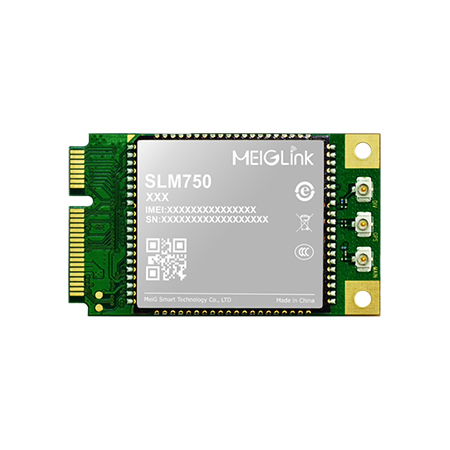

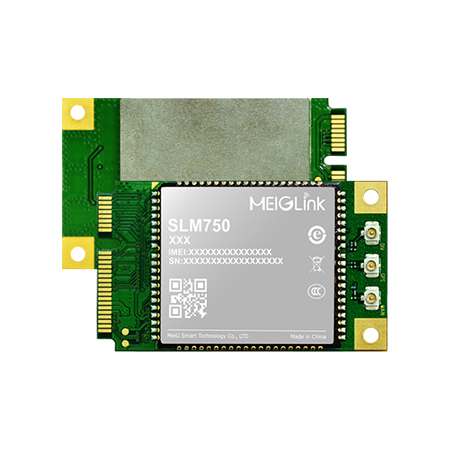

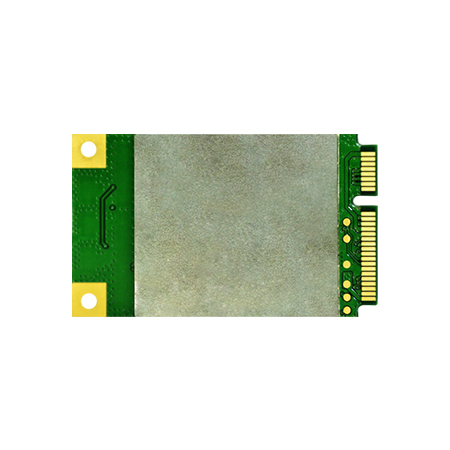

MeiG Smart SLM750 series of M2M modules

MEIG SLM750 MINI PCIe MODULE, LTE CAT4/3G/2G/GNSS, 51x30x5.5mm

SKU: VE71SMPR Categories: ,

Description

MeiG Smart SLM750 series of M2M modules are designed to provide customers with wireless communication service. It covers three operators’ networks domestically and the main operators’ networks globally. It delivers maximum 150Mbps-DL and 50Mbps-UL data rates on LTE networks, and has backward compatibility with 3G and 2G networks to ensure network communication can work in remote areas.

Rx diversity and MIMO technology are provided to improve communication quality and optimize data transmission rate; high-sensitivity GNSS function is also provided.

A rich set of protocols (TCP/FTP/HTTP) and multiple OS compatibility extend the applicability of the module to a wide range of M2M applications.

Main advantages:

  • Cover LTE-FDD / LTE-TDD / WCDMA / TD-SCDMA / EDGE / GPRS / GSM / EVDO & CDMA 1x network
  • Qualcomm® IZat ™ Gen 8C engine, supporting GPS / GLONASS / BeiDou
  • Support multiple voice coding (HR / FR / EFR / AMR / AMR-WB), support SRLTE / CSFB / VOLTE (optional)
  • Support high-speed USB2.0 interface
  • Support radio frequency MIMO and receive diversity technology to improve communication quality and optimize data transmission speed
