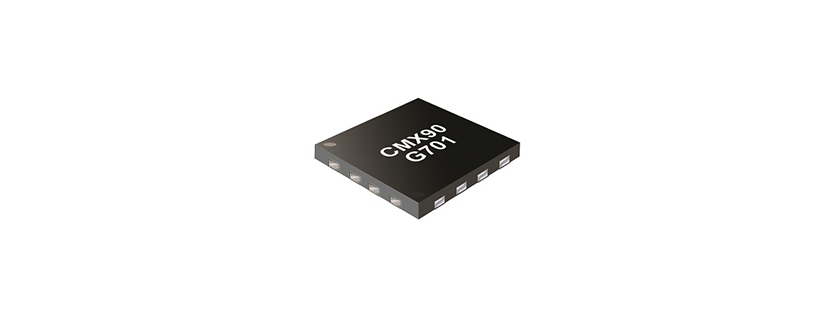

CMX90G701 RF Amplifier by CML Microcircuits
The CMX90G701 from CML Microcircuits is a RF Amplifier with Frequency 6 to 18 GHz, Small Signal Gain 9.4 to 10.4 dB, Noise Figure 2.6 to 3 dB, P1dB 10 dBm, P1dB 0.01 W. Tags: Surface Mount, Gain Block, Slope Amplifier. More details for CMX90G701 can be seen below.
Product Details
- Part Number: CMX90G701
- Manufacturer: CML Microcircuits
- Description: Positive-Slope Gain Block Amplifier from 6 to 18 GHz
General Parameters
- Type: Gain Block, Slope Amplifier
- Configuration: IC/MMIC/SMT
- Application: Backhaul
- Display Application: PA Modules, Eliminate passive equaliser
- Standards Supported: 5G, Ku Band, X Band
- Industry Application: Wireless Infrastructure, SATCOM, Cellular
- Frequency: 6 to 18 GHz
- Small Signal Gain: 9.4 to 10.4 dB
- Noise Figure: 2.6 to 3 dB
- P1dB: 10 dBm
- P1dB: 0.01 W
- Grade: Commercial, Space
- IP3: 19 dBm
- IP3: 0.079 W
- Input Power: 12 dBm
- Input Power: 0.0158 W
- Impedance: 50 Ohms
- Reverse Isolation: 16 dB
- Return Loss: 10 dB
- Supply Voltage: 2 to 5 V
- Current Consumption: 22 mA
- Quiscent Current: 15 uA
- Transistor Technology: GaAs pHEMT
- Package Type: Surface Mount
- Package: VQFN-16 Package
- Dimensions: 3 x 3 x 0.9 mm
- Operating Temperature: -40 to 105 Degree C
- Storage Temperature: -40 to 125 Degree C
- RoHS: Yes
- Note: Positive gain-slope: +1 dB ; Turn-On Time: 0.6 µs ; Turn-Off Time: 0.9 µs
