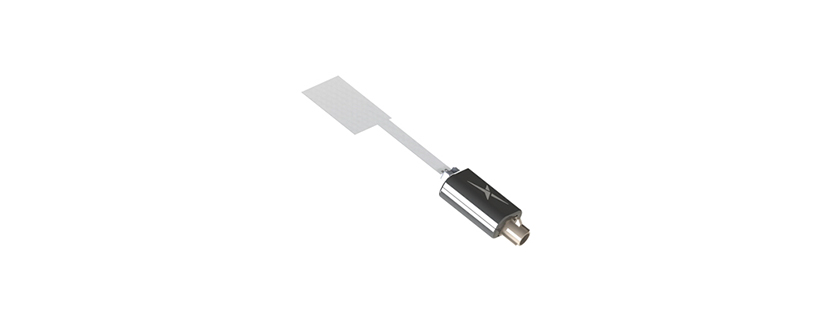

TFX257.A Antenna by Taoglas
The TFX257.A from Taoglas is a Transparent Flexible Antenna that operates from 2400-2500 MHz, 5150-5850 MHz, and 5925-7125 MHz. This linearly polarized antenna has an omni-directional radiation pattern and an efficiency of up to 55.3%. It has a unique invisible-like surface and is an alternative to standard flexible PCB antennas where the user may want to install the antenna in a covert area or other surfaces. The antenna can handle an input power of up to 2 W. This RoHS-compliant flexible antenna is available in an ABS/PC housing that measures 32 x 114 mm with pre-adhered adhesive and has a Code I FAKRA (male) connector. It is ideal for Wi-Fi 6, point-of-sale kiosks, digital signage, display screens, EV charging, parking bays, automotive, and commercial transportation applications.
Product Details
- Part Number: TFX257.A
- Manufacturer: Taoglas
- Description: 2.4/5/6 GHz Transparent, Omnidirectional Flexible Antenna for Wi-Fi Applications
General Parameters
- Type: Flexible, Low Profile, Transparent
- Directionality: Omni-Directional
- Polarization: Linear
- Standards: WiFi, WiFi 5, WiFi 6
- Frequency: 2400 to 7125 MHz
- Gain: -5.09 to -2.58 dBi (Avg), 2.04 to 4.59 dBi (Peak)
- Power: 2 W
- Efficiency: 31 to 55.3 %
- Industry: WiFi / Bluetooth / ZigBee
- Mounting: Adhesive Mount
- Impedance: 50 Ohms
- Connectors: Code I FAKRA (M) Beige
- Dimension: 32 x 114 mm
- Weight: 5 g
- Operating Temperature: -40°C to 85°C
- Tags: TFX Series
- Storage Temperature: -40°C to 85°C
- RoHS: Yes
