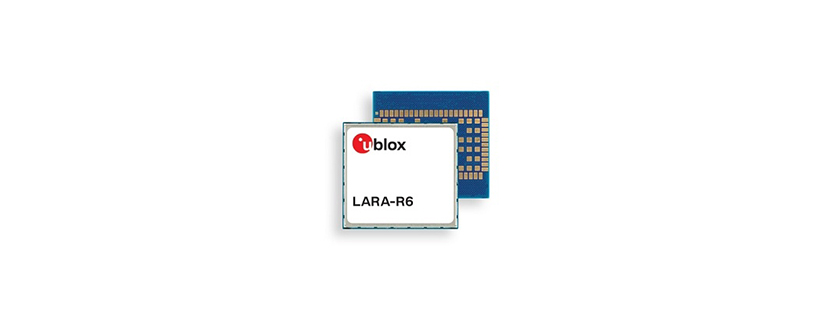

LARA-R6001 Cellular Module by u-blox AG
The LARA-R6001 from u-blox AG is a Multi-mode LTE Cat 1 Module that covers global LTE FDD, LTE TDD, UMTS/HSPA, and GSM/GPRS bands. It provides universal connectivity with 18 LTE bands plus 3G/2G fallback. This module is secured by design with the root of trust, secure boot, secure updates, and secure communications ((D)TLS) functionalities. It supports MQTT Anywhere and MQTT Flex u-blox communication services. The module also has a GNSS modem for positioning and supports AssistNow and CellLocate u-blox location services.
The LARA-R6001 requires a DC supply of 3.8 V and consumes 1.1 mA of current. It can be controlled via UART, USB 2.0 (delivering 480 Mbit/s), I2C, I2S, GPIO, and (U)SIM interfaces. This module is available in a 100-pin LGA package that measures 24 x 26 x 2.6 mm and is ideal for asset tracking, telematics, remote monitoring, alarm panels, video surveillance, connected health, and point-of-sale terminal applications.
Product Details
- Part Number: LARA-R6001
- Manufacturer: u-blox AG
- Description: Multi-mode LTE Cat 1 Module for Global Coverage
General Parameters
- Region: Global
- Carrier: Vodafone 1, Deutsche Telekom, Telefonica 1, Verizon 1, KC
- Fallback: 2G, 3G
- AT Command: No
- LTE/4G Band: 1, 2, 3, 4, 5, 7, 8, 12, 13, 18, 19, 20, 26, 28, 38, 39, 40, 41
- UMTS/HSPA/3G/WCDMA Band: 850, 900, 1800, 1900 MHz
- Cellular Standards: LTE Cat 1
- IoT: Yes
- MIMO: No
- Certification: PTCRB, GCF, FCC, ISED, RED, NCC, RCM
- Security: FOTA
- Form Factor: LGA
- Generation: 4G/LTE, 2G, 3G
- Interface: UART, I2C, USB2.0, GPIO
- Datarate Download Link: 10 Mbps
- Datarate Uplink: 5 Mbps
- Integrated Features: GNSS
- Voltage: 3.3 to 4.5 V
- Current: 1.1 mA
- Size: 24 x 26 x 2.6 mm
- Weight: 4 g
- Operating Temperature: -40 to 85 Degree C
- Package Type: Surface Mount
- ROHS: Yes
- Sms: Yes
Courtesy of everything RF
