SSG-30GHP-RC Signal Generator by Mini Circuits

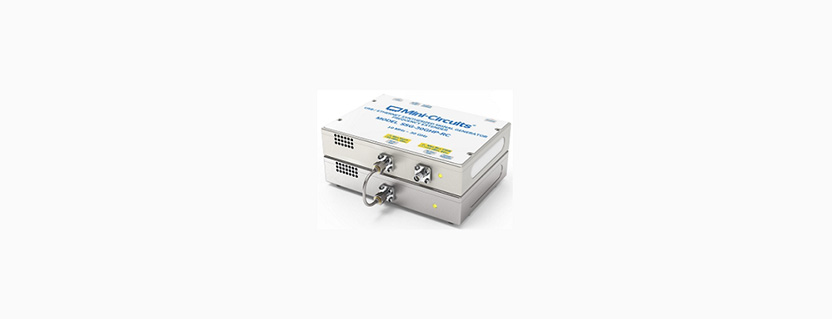

The SSG-30GHP-RC from Mini-Circuits is an mm-Wave Signal Generator with a frequency range from 10 MHz to 30 GHz. It delivers an output power of up to +27 dBm with a phase noise of -130 dBc/Hz (at 10 kHz offset) and has a frequency resolution of 0.2 Hz. This signal generator can be used for the characterization of high-power millimeter wave components and systems. It provides a reliable high-power signal, which reduces the need for external amplification and gain control. The generator can provide CW/single-tone outputs at any supported frequency and power level, pulse sequences with varying frequency, power, pulse width (down to 0.5 µs), and pulse repetition interval (PRI) or automated frequency/power sweep and hop sequences.
The SSG-30GHP-RC is a high-power, millimeter wave signal source available at an affordable price point for labs and production test setups. It has USB HID and Ethernet (HTTP/Telnet/SSH) interfaces to provide easy compatibility and control with a wide range of software setups and programming environments. This generator requires a DC supply of 6 V and consumes less than 1850 mA of current. It is available in a module that measures 129.54 x 91.44 mm and has 2.92 mm connectors. It is ideal for use in 5G FR2 bands (n257, n258, n261), high power burn-in/life testing, K/Ku-band radar, wideband LO source, and microwave/millimeter wave radio testing applications.
Product Details
- Part Number: SSG-30GHP-RC
- Manufacturer: Mini Circuits
- Description: USB/Ethernet Controlled mmWave Signal Generator from 10 MHz to 30 GHz
General Parameters
- Type: Analog Signal Generator
- Equipment Type: Portable / Handheld
- Configuration: Ethernet Controlled, USB / Computer Controlled
- Application: 5G FR2 bands n257, n258 & n261, High power burn-in / life testing, K & Ku band radar, Wideband LO source, Microwave & millimeter wave radio testing
- Frequency: 10 MHz to 30 GHz
- Modulation: Pulse
- Output Power: -38 to 27 dBm
- Phase Noise: -130 to -81 dBc/Hz
- Impedance: 50 Ohms
- Setting time: 0.2 to 5 ms
- Power Requirements: 5.6 to 6.4 V, 12.5 to 18.5 A
- Resolution Bandwidth: 0.1 to 0.2 Hz
- Storage Temperature: -20°C to 60°C
- Sub Harmonics: -40 dBc
- Temperature: 0°C to 50°C (Operating)
- Pulse Width: 0.5 us
- Harmonics: -35 to -9 dBc
- Non Harmonics: -60 dBc
- Output Connector: 2.29 mm – Female
