Mini-Circuits New Model Alert: TTL-Controlled Solid State Switches
TTL-CONTROLLED, Solid State Switches, Fast Switching for Automated Test Systems

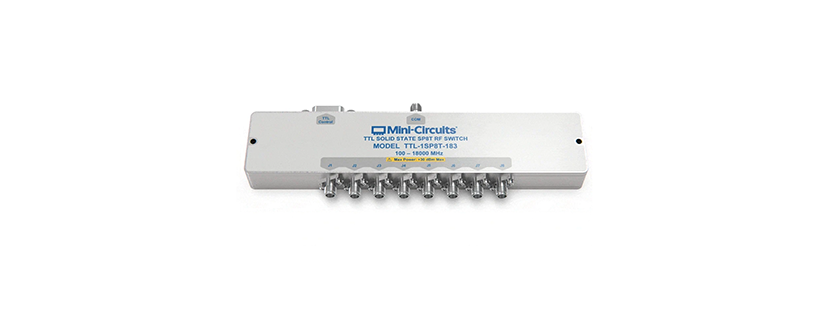

Mini-Circuits has expanded its lineup of switching solutions for test applications with new 4-way and 8-way TTL-controlled solid-state switches. These models feature a unique architecture that ensures high isolation across a wide bandwidth from 0.1 to 18 GHz. TTL logic-level control without the latency associated with USB or Ethernet enables 100 ns switching time with no delay contribution from the control. The switches come in compact housings with SMA connectors and a single 9-pin D-sub for power and control. They’re the perfect solution for signal routing in high-throughput production test systems and other applications where every nanosecond counts!

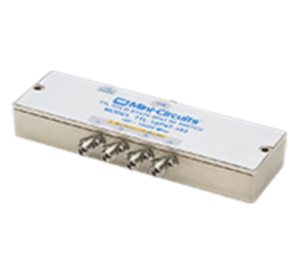

SP4T Switch
TTL-1SP4T-183
Key features:
- SP4T, absorptive architecture
- 0.1 to 18 GHz wideband performance
- 2.5 dB insertion loss mid-band
- 60 to 80 dB isolation across the band
- +20 to +30 dBm P1dB

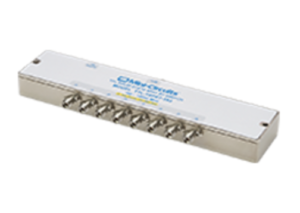

SP8T Switch
TTL-1SP8T-183
Key features:
- SP8T, absorptive architecture
- 0.1 to 18 GHz wideband performance
- 3.5 dB insertion loss mid-band
- 60 to 80 dB isolation across the band
- +20 to +30 dBm P1dB
Courtesy of Mini-Circuits
