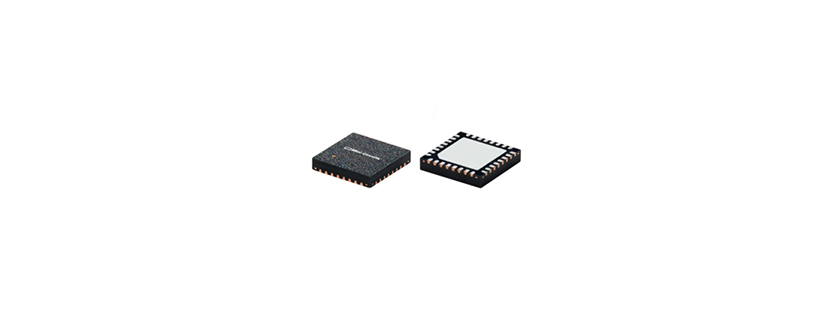

PMA5-83-2W+ RF Amplifier by Mini Circuits
The PMA5-83-2W+ from Mini-Circuits is a Distributed Power Amplifier MMIC that operates from 0.01 to 10 GHz. It delivers a saturated output power of 2 W with a gain of 12 dB and has a noise figure of 3.5 dB. This amplifier has low 2nd and 3rd harmonic response to ensure very low in-band distortion products, which is typically needed for high-fidelity measurement systems. It requires a DC supply of 12 V and consumes less than 400 mA of current. The PMA5-83-2W+ is available in a 32-lead QFN package that measures 5 x 5 mm and is ideal for test and measurement equipment, radar, EW, ECM defense systems, 5G Sub-6 GHz, MIMO, wireless infrastructure systems microwave radio and VSAT applications.
Product Details
- Part Number: PMA5-83-2W+
- Manufacturer: Mini Circuits
- Description: 2 W Distributed Power Amplifier MMIC from 0.01 to 10 GHz
General Parameters
- Type: Power Amplifier
- Configuration: IC/MMIC/SMT
- Application: Electronic Countermeasure (ECM), Electronic Warfare, VSAT
- Industry Application: Military, Radar, SATCOM, Test & Measurement, Wireless Infrastructure
- Frequency: 0.01 to 10 GHz
- Gain: 10.3 to 17.9 dB
- Noise Figure: 2.8 to 6.8 dB
- P1dB: 1.14 to 1.41 W
- P1dB: 30.6 to 31.5 dBm
- IP3: 36.8 to 44.1 dBm
- IP3: 4.78 to 25.7 W
- Saturated Power: 1.65 to 3.63 W
- Saturated Power: 32.2 to 35.6 dBm
- Input Power: 31 dBm
- Input Power: 1.25 W
- Power Dissipation: 10 W
- Impedance: 50 Ohms
- Pulsed/CW: CW
- Reverse Isolation: 34 to 50 dB
- Input Return Loss: 17 to 33 dB
- Output Return Loss: 10 to 24 dB
- Harmonics: -39.9 to -61 dBc
- Supply Voltage: 12 to 16 V
- Current Consumption: 400 mA
- Package Type: Surface Mount
- Package: 32-Lead QFN
- Dimensions: 5 x 5 mm
- Weight: 0.05 g
- Operating Temperature: -45 to 85 Degree C
- Storage Temperature: -65 to 150 Degree C
