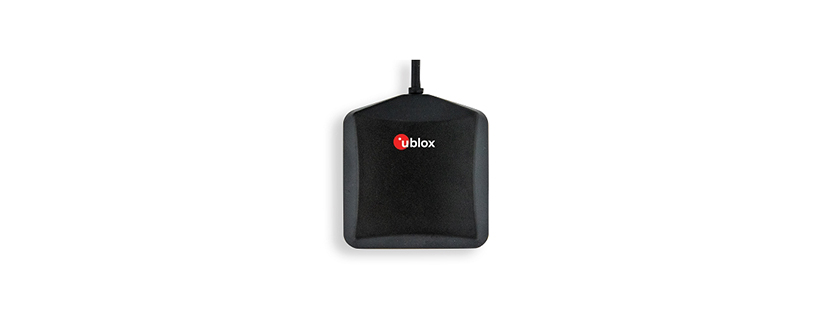

ANN-MB5 GPS/GNSS Antenna by u-blox AG

The ANN-MB5 from u-blox is an Active Multi-Band (L1/L5/E5a/B2a/NavIC) active GNSS antenna. It operates from 1559 to 1608 MHz (L1) and 1164 to 1186 MHz (L5/E5a/B2a/NavIC) frequency bands. This RHCP antenna provides a gain of 4.5 dBic (Zenith) with an efficiency of up to 65% (L5 band) and has an axial ratio of 6.3 dB (L5 band). It includes a low-noise amplifier (LNA) with SAW filtering that provides a gain of 16 dB with a noise figure of 2 dB. This LNA provides an out-of-band rejection of up to 45 dB and has a VSWR of 2.0:1. It requires a DC supply from 3 to 5 V and consumes 17 mA of current.

The antenna is available in a magnetic base-mounted housing that measures 49.14 x 46.14 x 15.94 mm and has an SMA (plug) connector with a 3-meter-long RG174 cable.

Product Details

• Part Number: ANN-MB5
• Manufacturer: u-blox AG
• Description: L1/L5 Band Active GNSS Antenna with Integrated LNA and SAW Filter


General Parameters

• • Active/Passive: Active
  • Amplifier Gain: 15 ± 3.0 dB, 16 ± 3.0 dB
  • Frequency Bands: L1, L5
  • Frequency: 1164 – 1186 / 1559 – 1608 MHz
  • Gain: 4 to 4.5 dBic
  • Noise Figure: 2 dB
  • Constellation: GPS
  • VSWR: 2.0:1
  • Voltage: 3 to 5 V
  • Current: 17 mA
  • Impedance: 50 Ohms
  • Connectors: SMA
  • Cable: 3 m RG174
  • Dimension: 49.1 x 46.1 x 15.9 mm
  • Indoor or Outdoor: Outdoor
  • Integration: Amplifier
  • Mounting: Magnet Mount
  • Polarization: RHCP
  • Weight: 103.8 g (typ. including cable)
  • Axial Ratio: 3.2 to 6.4 dB
  • Operating Temperature (°C): -40 to 85 Degree C
