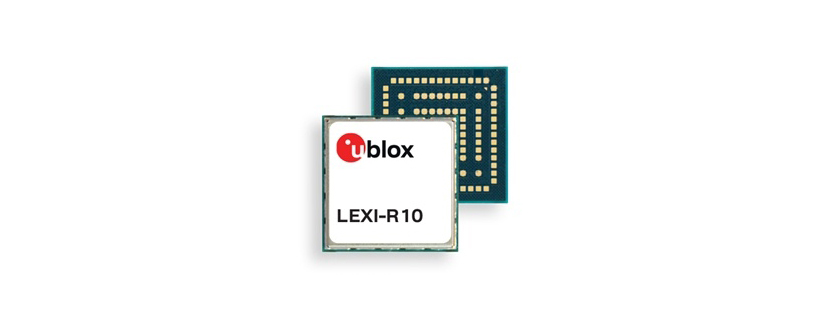

LEXI-R10 Series Cellular Module by u-blox AG

The LEXI-R10 Series from u-blox are LTE Cat 1.bis Modules that are designed for size-constrained devices. They support multi-band LTE-FDD and can connect with LTE Cat 1 networks. These modules are qualified according to the u-blox qualification policy, based on the AEC-Q104 standard. They are available in two variants: the LEXI-R10401D which is designed for use in the Americas and the LEXI-R10801D which is designed for use in the EMEA and APAC regions. These modules have an embedded Wi-Fi radio to scan Wi-Fi hotspots for indoor locations and support the u-blox CellLocate positioning service. They are ideal for a wide range of value-oriented applications that require medium data speed and superior coverage such as asset tracking, telematics, healthcare, and wearables.

The LEXI-R10 Series modules deliver a downlink data rate of 10 Mbit/s and an uplink data rate of 5 Mbit/s. They require a DC supply of 3.8 V and support Rel-12 LTE power save mode (PSM) and Rel-13 eDRX features to reduce power consumption. These modules are available in a 133-pin LGA package that measures 16 x 16 x 2 mm and can be controlled via UART, USB 2.0, GPIO, (U)SIM, and I2C interfaces. They are ideal for asset tracking, telematics, healthcare, and wearable applications.

Product Details

• Part Number: LEXI-R10 Series
• Manufacturer: u-blox AG
• Description: Medium Data Rate LTE Cat 1.bis Modules for Space-Constrained Applications


General Parameters

• Application: Asset tracking, telematics, healthcare, and wearables
• Region: APAC, EMEA, NAFTA
• LTE/4G Band: LEXI-R10401D: (2, 4, 5, 12, 13, 14, 66, 71), LEXI-R10801D: (1, 3, 5, 7, 8, 20, 28)
• Cellular Standards: LTE Cat1
• Package: 133 Pin LGA
• Generation: 4G/LTE
• Interface: UART, USB, I2C, USIM, GPIO
• Datarate Download Link: Up to 10 Mbps
• Datarate Uplink: Up to 5 Mbps
• Voltage: 3 to 4.5 V
• Power: 23 dBm
• Size: 16.0 × 16.0 × 2.0 mm
• Operating Temperature: -40 °C to +85 °C
• Package Type: Surface Mount
• ROHS: Yes
• Sms: Yes
• Note: LEXI-R10401D: (Americas), LEXI-R10801D: (EMEA and APAC)
