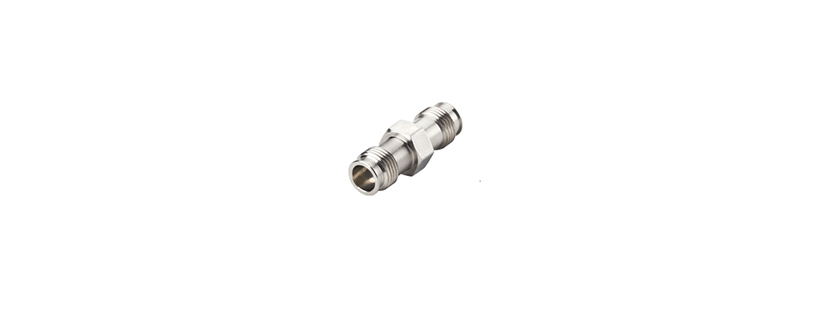

135F-Series In Series RF Adapter by Mini Circuits

The 135F-Series from Mini Circuits is a In Series RF Adapter with Frequency DC to 90 GHz, Insertion Loss 0.17 to 0.66 dB, Temperature -55 to 100 Degree C. More details for 135F-Series can be seen below.

Product Details

• Part Number: 135F-Series
• Manufacturer: Mini Circuits
• Description: 1.35 mm – Male/ Female Inseries Adapter Series


General Parameters

• Connector: 1.35 mm
• Adapter – Gender 1: Female, Male
• Adapter – Gender 2: Female, Male
• Gender: Male-Male, Male-Female, Female-Female
• Body_Material: Passivated Stainless Steel
• Geometry: Straight
• Impedance: 50 Ohms
• RoHS: Yes
• Frequency: DC to 90 GHz
• Dimension: 0.69 x 0.236 in.
• VSWR: 1.05:1(F-F), 1.07:1 (M-M), 1.08:1 (F-M)
• Insertion Loss: 0.17 to 0.66 dB
• Temperature: -55 to 100 Degree C
• Note: Weight:2.1 g
