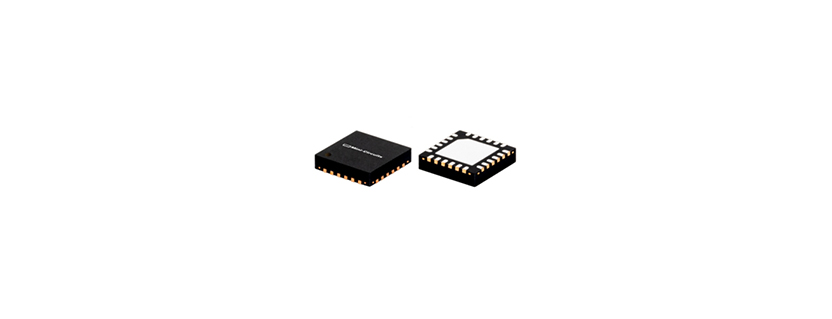

LVA-6183PN+ RF Amplifier by Mini Circuits
The LVA-6183PN+ from Mini-Circuits is a Low Phase Noise Distributed Amplifier MMIC that operates from 6 to 18 GHz. It provides a gain of 19.9 dB with a noise figure of 4.1 dB and a P1dB of +19.6 dBm. This amplifier has ultra-low phase noise of -165 dBc/Hz (at 10 KHz offset) and it is fabricated on a GaAs HBT process
The LVA-6183PN+ requires an operating voltage of 6 V and consumes 123 mA of current. This amplifier is available in 24-Lead QFN Package that measures 4 x 4 mm. It is ideal for use with low noise signal sources and highly sensitive transceiver signal chains like radar, EW, ECM defense systems, 5G MIMO, backhaul radio systems, signal distribution networks, and test & measurement applications.
Product Details
- Part Number: LVA-6183PN+
- Manufacturer: Mini Circuits
- Description: Ultra-Low Nosie Phase Distributed GaAs HBT Amplifier MMIC from 6 to 18 GHz
General Parameters
- Type: Low Noise Amplifier
- Configuration: IC/MMIC/SMT
- Application: 5G, Backhaul, Electronic countermeasures (ECM)
- Industry Application: Radar, Test & Measurement
- Frequency: 6 to 18 GHz
- Gain: 15.9 to 19.9 dB
- Noise Figure: 4.1 to 5.7 dB
- P1dB: 14.6 to 20.3 dBm
- IP3: 17.5 to 23 dBm
- Impedance: 50 Ohms
- Return Loss: 11 to 20 dB
- Input Return Loss: 11 to 20 dB
- Output Return Loss: 12 to 19 dB
- Phase Noise: -165 dBc/Hz
- Supply Voltage: 6 V
- Transistor Technology: GaAs HBT
- Package Type: Surface Mount
- Package: 24-Lead QFN
- Dimensions: 4×4 mm
- Operating Temperature: -45 to 105 Degree C
- Storage Temperature: -65 to 150 Degree C
- RoHS: Yes
