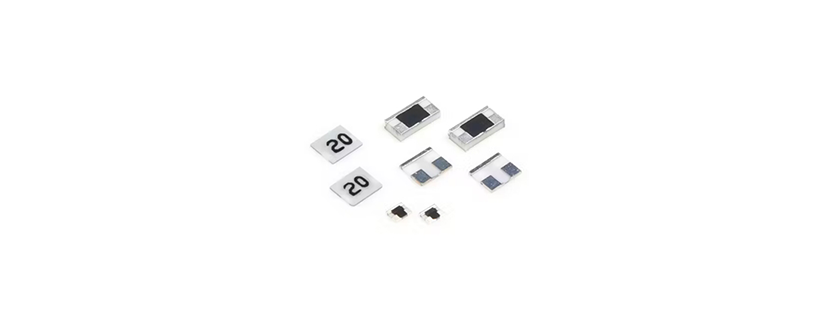

PCAA Series Fixed Attenuator by Inmet by Spectrum Control

The PCAA Series from Inmet by Spectrum Control are Powerfilm Chip Attenuators that operate from DC to 18 GHz. They are available in attenuation values from 0 to 20 dB and have attenuation stability of 0.0001 dB/dB/°C. These attenuators can handle an input power of up to 5 W and have a VSWR of less than 1.5:1. They have an operating temperature range of -55°C to +150°C. These chip attenuators have an alumina substrate and are available in packages that measure 1.91 x 1.52 mm with electroplated Silver over Nickel solderable terminals.

Product Details

• Part Number: PCAA Series
• Manufacturer: Inmet by Spectrum Control
• Description: Chip Attenuators with Alumina-Substrate from DC to 18 GHz


General Parameters

• Frequency: DC to 18 GHz
• Attenuation: 1, 2, 3, 4, 5, 6, 10, 20 dB
• Power: 0.15 to 0.5 W (Up), 0.75 to 5 W (Down)
• Package Type: Chip
• Grade: Commercial
• Operating Temperature: -55 to 150 Degrees C
