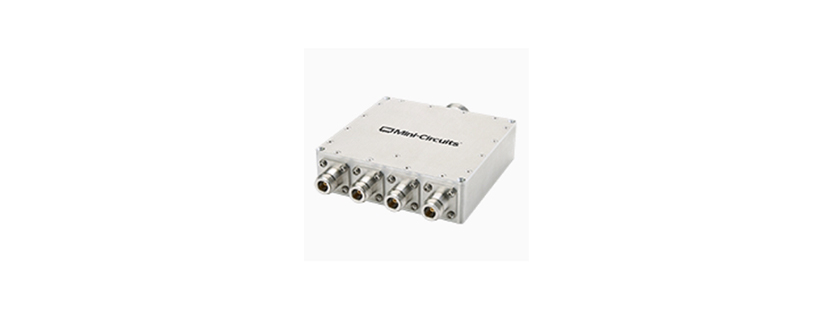

COM-2G42G51K0+ Power Divider by Mini Circuits
The COM-2G42G51K0+ from Mini-Circuits is a 4-Way Power Divider/Combiner that operates from 2.4 to 2.5 GHz. It can handle an input power of up to 1.2 kW (as a splitter and combiner), has an insertion loss of less than 0.3 dB and a VSWR of 1.22:1. This non-isolating power divider/combiner has a phase unbalance of ±1° and an amplitude imbalance of ±0.15 dB. It is available in a module that measures 4.528 x 4.580 x 1.339 inches with one 7/16 DIN (female) connector and four N-type (female) connectors. The COM-2G42G51K0+ is suitable for RF energy generators, S-band amplifiers, industrial heating, and plasma generators.
Product Details
- Part Number: COM-2G42G51K0+
- Manufacturer: Mini Circuits
- Description: 1.2 kW, 4-Way Power Splitter/Combiner from 2.4 to 2.5 GHz
General Parameters
- Configuration: 4 Way
- Applications: RF Energy Generators, Industrial Heating, Plasma Generators
- Frequency: 2.4 to 2.5 GHz
- Insertion Loss: 0.1 to 0.3 dB
- Input Power: 1200 W
- Amplitude Balance: 0.15 to 0.3 dB
- Phase Balance: 1 to 5 Degree
- Impedance: 50 Ohms
- Package Type: Module with Connectors
- Connector: 7/16 DIN, 7/16 DIN – Female, N Type, N Type – Female
- Grade: Commercial
- RoHS: Yes
- Storage Temperature: 0 °C to +105 °C
- Operating Temperature: 0 °C to +105 °C
