Mini-Circuits New Model Alert: High Rejection LTCC Low Pass Filters

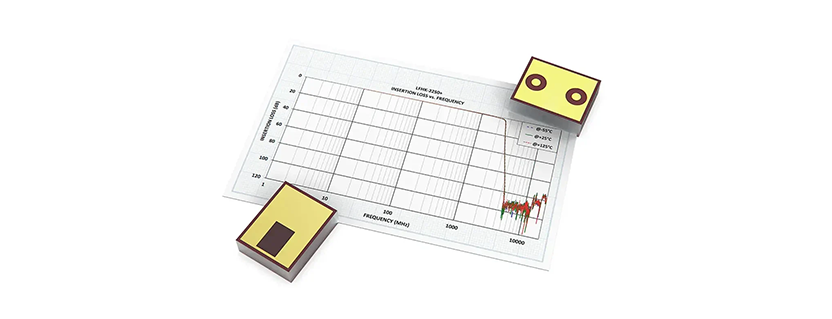

HIGH REJECTION, LTCC Low Pass Filters, Up to 80 dB Rejection in a 1008 Footprint
Mini-Circuits is expanding its revolutionary lineup of high rejection LTCC filters with the introduction of low pass models to our catalog. The new LFHK-series of LTCC low pass filters have been characterized with stopband rejection on the order of 80 dB with steep skirts and precise signal attenuation beyond the corner frequency. These filters have a typical insertion loss of less than 1.7 dB and a combination of size, reliability, and cost unmatched by other filter technologies with comparable performance. These proprietary designs are self-shielded and resistant to detuning in a standard, 1008 pick and place case style suitable for high-volume production. Check out our growing selection in stock or contact us to discuss your requirements for custom designs.
Key Features:
- Capable of passbands beyond 20 GHz
- High rejection, 80 dB
- Low insertion loss, < 1.7 dB
- Standard 1008 surface-mountable case style
- Self-shielded design prevents detuning
- Patent pending
Courtesy of Mini-Circuits
