Mini-Circuits MMIC IQ Mixers to 40 GHz

2 GHz TO 40 GHz RF & LO. MMIC IQ Mixers, High Linearity for Tx & Rx Applications

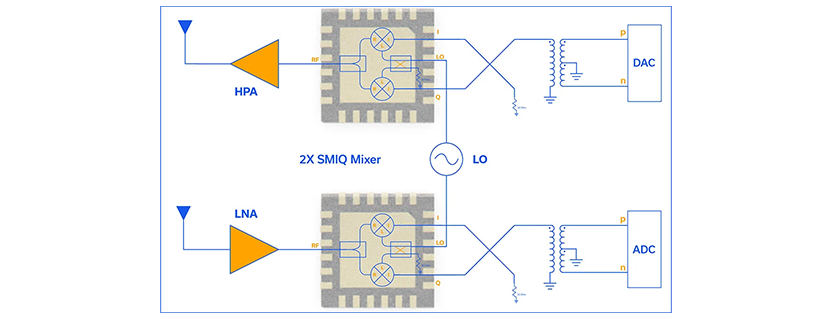

Mini-Circuits’ SMIQ-series of +18 dBm LO power, wideband, low conversion loss IQ MMIC mixers is ideal for use in sensitive Rx and Tx applications. Wideband RF, LO, and IF ports make the SMIQ-series suitable for many applications in 5G mmWave, SATCOM, EW, and test and measurement. High linearity, isolation, and image rejection support high-dynamic range requirements. All models come housed in volumetrically efficient 4×4 mm 24-Lead QFN-style packages, ideal for dense layouts.

Explore SMIQ Mixers

CATALOG MODELS

SMIQ Mixers

Model Name SMIQ-1844H+ Description MMIC IQ Mixer, DC-7 GHz IF, +18 dBm LO, 4x4mm, 50Ω F Low 18 GHz F High 40 GHz

SMIQ-134H+ MMIC IQ Mixer, DC-7 GHz IF, +18 dBm LO, 4x4mm, 50Ω 10 GHz 30 GHz

SMIQ-6243H+ MMIC IQ Mixer, DC-6 GHz IF, +18 dBm LO, 4x4mm, 50Ω 6 GHz 24 GHz

SMIQ-5143H+ MMIC IQ Mixer, DC-7 GHz IF, +18 dBm LO, 4x4mm, 50Ω 5 GHz 14 GHz

SMIQ-263H+ MMIC IQ Mixer, DC-3 GHz IF, +18 dBm LO, 4x4mm, 50Ω 2 GHz 6 GHz

Courtesy of Mini-Circuits
