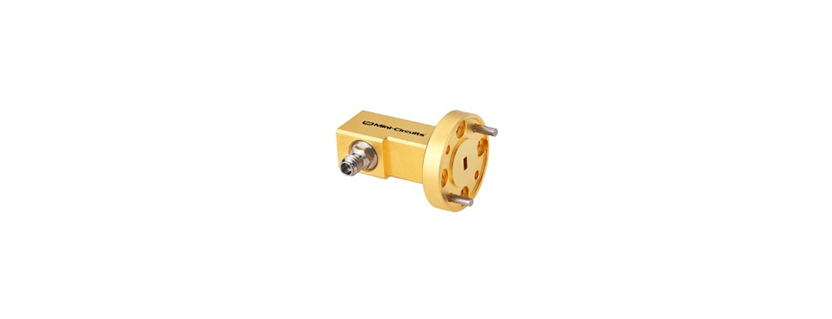

WR10-10R+ Waveguide to Coax Adapter by Mini-Circuits

The WR10-10R+ from Mini-Circuits is a Waveguide-to-Coaxial Adapter that operates from 75 to 110 GHz (W-Band). It has an insertion loss of less than 1.3 dB and a VSWR of 1.20:1. This RoHS-compliant adapter is available in a gold-plated Aluminum alloy module that measures 25.4 x 19.1 mm and has a right-angled 1.0 mm (female) connector & a WR10 waveguide interface with a precision standard UG 387/U anti-cocking flange. It is ideal for over-the-air (OTA) mmWave testing, W-band communication, SATCOM, and R&D applications.

Product Details

• Part Number: WR10-10R+
• Manufacturer: Mini Circuits
• Description: WR-10 to 1.0 mm-Female Adapter from 75 to 110 GHz


General Parameters

• Waveguide Size: WR10 / WG27 / R900
• Connector: 1.0 mm
• Connector Gender: Female / Jack
• Geometry: Right Angle
• Frequency: 75 to 110 GHz
• Flange: UG387/U
• Insertion Loss: 0.6 to 1.3 dB
• VSWR: 1.20:1, 1.60:1
• Impedance: 50 Ohms
• Application: R&D, over-the-air (OTA) mmWave test laboratories, SATCOM systems
• Operating Temperature: +10° C to +40° C
• Storage Temperature: -55° C to +100° C
• Weight: 11 grams
• RoHS: Yes
