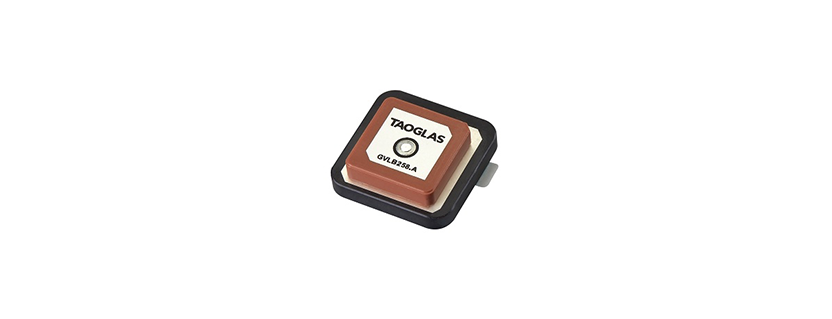

GVLB258.A GPS/GNSS Antenna by Taoglas
The GVLB258.A from Taoglas is a GPS/GNSS Antenna with Frequency 1160 to 1610 MHz, Gain 3.08 dB, Impedance 50 Ohms, Operating Temperature (°C) -40 to 85 Degree C. Tags: Patch, Embedded. More details for GVLB258.A can be seen below.
Product Details
- Part Number: GVLB258.A
- Manufacturer: Taoglas
- Description: Accura GNSS L1/L5 Stacked Patch Multi-Band Antenna
General Parameters
- Active/Passive: Passive
- Application Industry: Automotive, Agriculture
- Application Type: RTK, Wearables, Transportation, Agriculture, Navigation, Security, Autonomous Vehicles
- Type: Patch, Embedded
- Frequency Bands: L2, L1, E1, G1, B1, B2a, E5a, L5
- Frequency: 1160 to 1610 MHz
- Gain: 3.08 dB
- Constellation: BEIDOU, Galileo, GLONASS, GPS, IRNSS
- VSWR: 2:1
- Impedance: 50 Ohms
- Dimension: 25*25*8.12 mm
- Mounting: Surface Mount, Adhesive Mount
- Material: Ceramic
- Polarization: RHCP
- Weight: 25 g
- Operating Temperature (°C): -40 to 85 Degree C
