Mini-Circuits New Model Alert: SP4T GaAs MMIC Switch
DC TO 30 GHz, Fast GaAs MMIC Switches, SPDT & SP4T Models for Wideband Systems

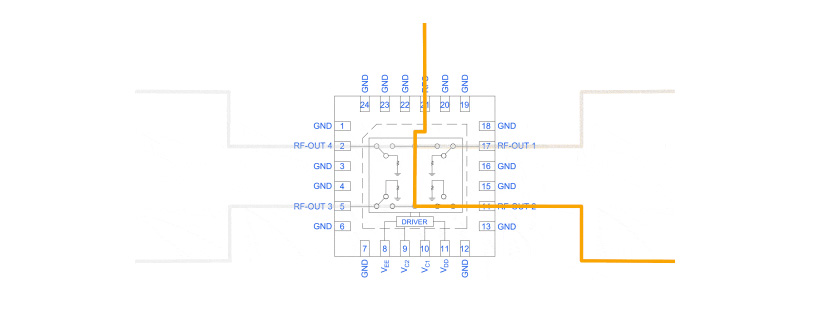

Mini-Circuits introduces the M4SWA4-34DR+ GaAs MMIC SP4T switch, supporting a wide variety of signal routing applications from DC to 30 GHz in a 4x4mm QFN-style package. This model joins the M3SWA2-34DR+ SPDT model to give you even more high-performance options for signal routing in your system.
These unique GaAs-based switches have grown in popularity and offer several advantages, including fast switching speed and better power handling at lower frequencies than competitive devices utilizing SOI, and at a fraction of the cost!
Key Features:
- DC to 30 GHz
- 1.8 dB IL
- Isolation, 47 dB
- tr/tf 23.1 ns/6.4 ns
- 4×4 mm QFN Style
Key Features:
- DC to 30 GHz
- 1.0 dB IL
- Isolation, 65 dB
- tr/tf 6.9 ns/7.1 ns
- 3×3 mm QFN Style
Key Features:
- DC to 30 GHz
- SPDT to SP6T
- Low IL
- High Isolation
- SMT & Die
Courtesy of Mini-Circuits
