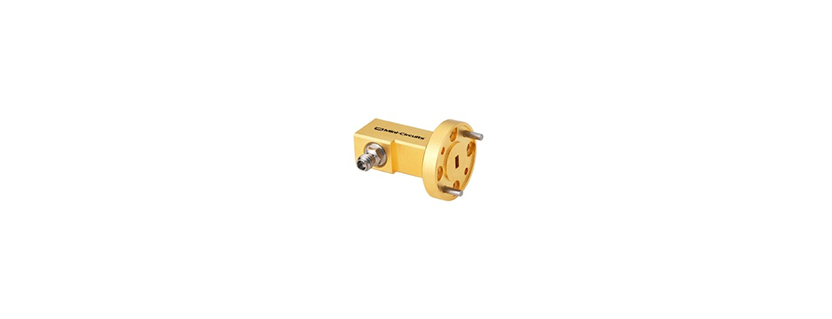

WR12-10R+ Waveguide to Coax Adapter by Mini-Circuits
The WR12-10R+ from Mini-Circuits is a Right-Angled Waveguide to Coaxial Adapter that operates from 60 to 90 GHz. It has an insertion loss of 0.6 dB and a VSWR of 1.2:1. This adapter offers an Aluminum alloy construction with gold-plated finish to ensure repeatable RF performance. It is available as an Aluminum module measuring 19.1 x 10.2 inches and has a WR-15 waveguide interface with precision UG387/U anti-cocking flange and a 1.0 mm (female) connector. This RoHS-compliant adapter is ideal for OTA mmWave testing, E-band communications, SATCOM, and R&D applications.
Product Details
- Part Number: WR12-10R+
- Manufacturer: Mini Circuits
- Description: Right-Angled WR15 to 1.0 mm Female Adapter from 60 to 90 GHz
General Parameters
- Waveguide Size: WR12 / WG26 / R740
- Connector: 1.0 mm
- Connector Gender: Female / Jack
- Geometry: Right Angle
- Frequency: 60 to 90 GHz
- Flange: UG387/U
- Insertion Loss: 0.6 to 1 dB
- VSWR: 1.20:1, 1.10:1, 1.50:1
- Impedance: 50 Ohms
- Application: R&D, over-the-air (OTA) mmWave test laboratories, SATCOM systems
- Operating Temperature: +10° C to +40° C
- Storage Temperature: -55° C to +100° C
- Weight: 11 grams
- RoHS: Yes
Courtesy of everythingRF
