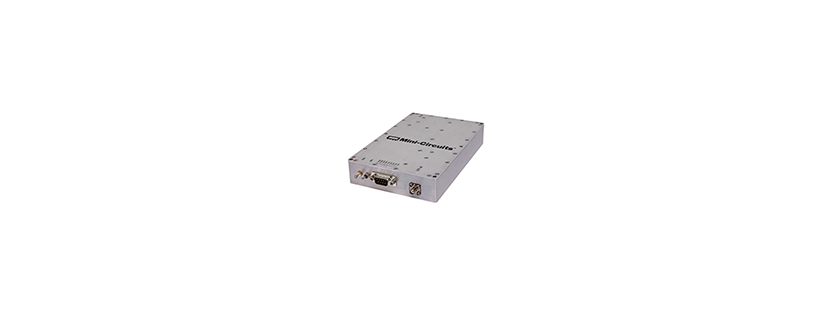

ZHL-20M2G7025X+ RF Amplifier by Mini-Circuits
The ZHL-20M2G7025X+ from Mini-Circuits is a Power Amplifier (PA) that operates from 20 to 2700 MHz. It delivers a saturated output power of +45 dBm (~32 W) with a small signal gain of 50 dB. This PA is based on state-of-the-art semiconductor technology and is suitable for use in a wide range of applications.
The ZHL-20M2G7025X+ supports TTL control along with a monitoring circuit for high reliability. It requires a DC supply of 28 V and consumes less than 5.4 A of current. This RoHS-compliant amplifier is available in an Aluminum module that measures 6.426 x 4.065 x 1.180 inches and has SMA (female) connectors. It is ideal for R&D, production/OTA test systems, communication systems, test and measurement equipment, and general laboratory applications.
Product Details
- Part Number: ZHL-20M2G7025X+
- Manufacturer: Mini Circuits
- Description: 32 W Power Amplifier from 20 to 2700 MHz
General Parameters
- Type: Power Amplifier
- Configuration: Module with Connector
- Application: Research and Development, Laboratory
- Industry Application: Test & Measurement
- Frequency: 20 to 2700 MHz
- Small Signal Gain: 45 to 55 dB
- Gain Flatness: ± 0.8 to ± 2.0 dB
- Noise Figure: 10 dB
- P1dB: 36 to 40 dBm
- P1dB: 3.98 to 10 W
- IP3: 40 to 49 dBm
- Saturated Power: 42 to 45 dBm
- Saturated Power: 15.84 to 31.62
- Impedance: 50 Ohms
- Pulsed/CW: CW
- Sub-Category: Linear Amplifier
- Input Return Loss: 7.7 to 23 dB
- Output Return Loss: 7.7 to 10 dB
- Supply Voltage: 28 to 30 V
- Current Consumption: 3.5 to 5.4 A
- Input Connector: SMA – Female
- Output Connector: SMA – Female
- Operating Temperature: -20 to 85 Degree C
- Storage Temperature: -55 to 100 Degree C
- RoHS: Yes
Courtesy of Mini-Circuits
