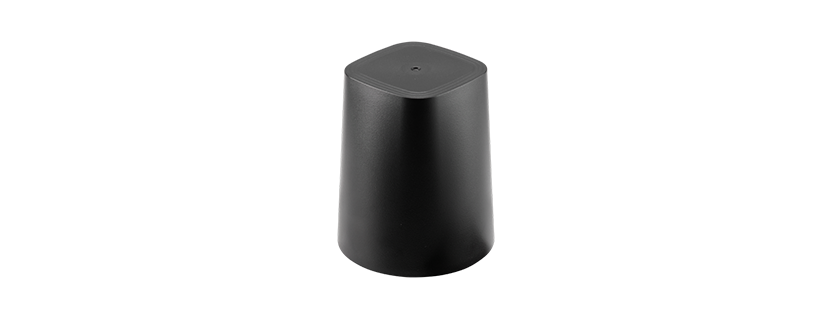

Taoglas Olympian III Antenna Series
The Olympian III series are high‑performance, screw‑mount combination antennas available in compact 70 mm and 59 mm diameters. Designed for vehicles and outdoor assets, they deliver robust GNSS, wideband cellular MIMO, and Wi‑Fi/Bluetooth connectivity. The IP67‑rated enclosure is made from durable ASA material and features an integrated rubber O‑ring to prevent water ingress ideal for harsh environments and vandal‑resistant installation.
Each unit has a 1m cable and SMA (Male) connectors as standard, with cable lengths and connectors fully customizable to your application. Taoglas recommends a minimum cable length of 1 m to ensure stable antenna performance. Available in black or white housings to suit your deployment.
Olympian III – MA181.A/W
3-in-1, Active GNSS (L1) and 2x Wideband Cellular MIMO (600-6000 MHz) Combination Screw Mount Antenna.
- 1x GPS-GLONASS-BeiDou
- 2x 5G/4G MIMO
- IP67 rated enclosure
- Dimensions: ∅59.5 x 70 mm

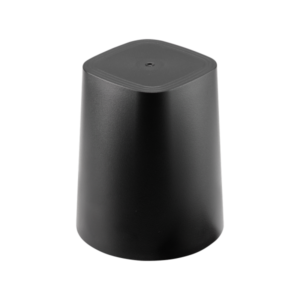

Olympian III – MA182.A/W
2-in-1, 2x Wideband Cellular MIMO (600-6000 MHz) Combination Screw Mount Antenna.
- 2x 5G/4G MIMO
- IP67 rated enclosure
- Dimensions: ∅59.5 x 70 mm

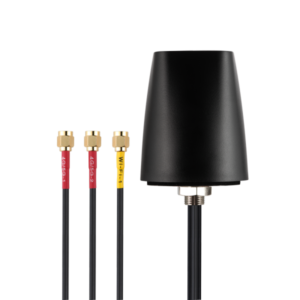

Olympian III – MA183.A/W
3-in-1, 2x Wideband Cellular MIMO (600-6000 MHz) and Wi-Fi 6E/7 Screw Mount Antenna.
- 2x 5G/4G MIMO
- 1x Wi-Fi/Bluetooth
- IP67 rated enclosure
- Dimensions: ∅59.5 x 70 mm
Innovation at Taoglas

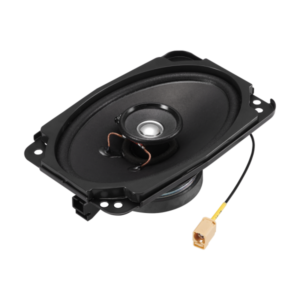

SPKW.46.8.01: Sound + Connectivity in One Drop‑In
Developed in response to customer feedback, the SPKW.46.8.01 combines a 4×6‑inch, 8‑ohm speaker with an integrated, high‑performance Wi‑Fi/Bluetooth antenna. By utilizing the available audio cavity in vehicle cabs, it positions the antenna for consistent wireless performance without adding separate components or brackets.
The result: reliable audio, stable connectivity, and a cleaner install. Integrating the antenna directly into the speaker helps reduce system complexity, minimize additional installations, and save valuable space all while maintaining the RF performance demanded by modern telematics and infotainment systems.
Typical Applications Include:
- Trucking and Automotive infotainment solutions
- Connected kiosks and point of sale terminals
- Digital signage and public information systems
- Industrial and commercial communication devices
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
