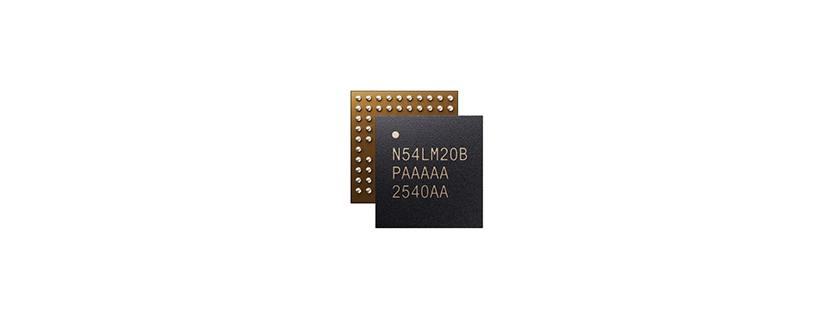

nRF54LM20B Wireless Chipset by Nordic Semiconductor
The nRF54LM20B from Nordic Semiconductor is a Multiprotocol Wireless System-on-Chip (SoC). It is designed for demanding designs in Bluetooth devices used in smart homes and industrial applications that require very high memory and other advanced features. This SoC integrates a 128 MHz ARM Cortex-M33 core with a RISC-V co-processor and a 128 MHz Axon NPU for edge AI computing. It also includes 2 MB of NVM and 512 KB of RAM memories, a multi-protocol 2.4 GHz radio, a 32 MHz crystal, a security block, and serial/peripheral interfaces. This wireless SoC supports protocols such as Bluetooth Low Energy (BLE) 6.0, Thread, Matter, Zigbee, and a proprietary 2.4 GHz mode. It delivers a Tx output power of up to +8 dBm and has an Rx sensitivity of -101 dBm.
The nRF54LM20B adopts several features from Bluetooth LE – LE 2M, LE 1M, LE-coded and channel sounding for accurate range measurement. This wireless SoC is equipped with multiple security functions, including TrustZone isolation, a cryptographic engine with side-channel leakage protection, and physical protection (e.g. tampler detection). It can be remotely controlled using multiple interfaces such as I2C, UART, ADC, USB, and GPIO. This SoC requires a DC supply of 3 V and consumes 4.8 mA (Tx) & 3.4 mA (Rx) of current. It is available in either a CSP package measuring 3.85 x 3.67 mm or a QFN package that measures 6 x 6 mm.
Product Details
- Part Number: nRF54LM20B
- Manufacturer: Nordic Semiconductor
- Description: Multiprotocol Wireless SoC with Large Memory and Edge AI Capabilities
General Parameters
- Application: IoT
- Technology: Thread, WiFi + Bluetooth + 802.15.4, Zigbee
- Frequency: 2.4 GHz
- Bluetooth Standard: Bluetooth V6.0
- Bluetooth Application: Audio, Non-Audio
- Bluetooth Low Energy: Yes
- WiFi Standard: 802.15 4
- Output Power: 8 dBm (Tx)
- Sensitivity: -96 dBm (Rx)
- Voltage: 1.7 to 3.6 V
- Interface: USB, GPIO, SPI, UART
- RAM: 512 KB
- Dimension: 3.9 x 3.7 mm (CSP) & 6 x 6 mm (QFN)
- Package: CSP & QFN
- Pins: 98 (CSP) & 52 (QFN)
- Operating Temperature: -40 to 85 Degree C
- Note: NVM Memory: 2 MB ; Processor: 128 MHz Arm Cortex-M33
