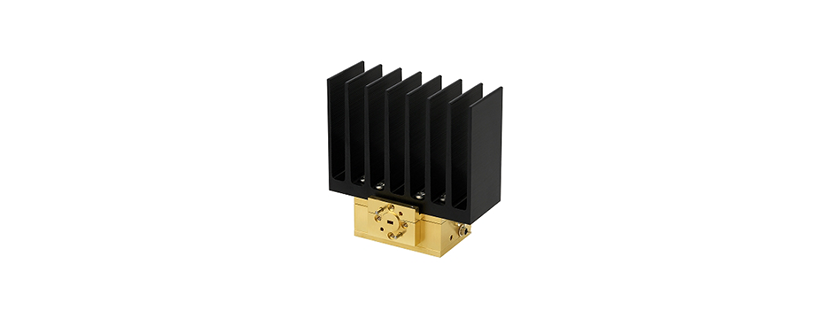

WVA-71863HP+ RF Amplifier by Mini-Circuits
The WVA-71863HP+ from Mini-Circuits is a Power Amplifier that operates from 71 to 86 GHz. It delivers a saturated output power of 24.5 dBm (0.28 W) with a gain of 39 dB and a gain flatness of ±1.5 dB. This amplifier incorporates several DC-protection features such as over-voltage, reverse voltage, and in-rush current protection to protect from damage in case of unexpected spikes in voltage during operation. It requires a DC supply from 10 to 15 V and consumes less than 1 A of current. This amplifier has internal DC-DC conversion circuitry which maintains constant efficiency over the full input voltage range and allows the amplifier to be protected from external mishandling or unexpected spikes in voltage.
The WVA-71863HP+ is available in a module that measures 48.99 × 42.06 × 24.48 mm with WR12 waveguide input and output interface. It is ideal for use in aerospace/defense systems, automotive radar testing, test and measurement, imaging, and wireless backhaul testing in the E-Band.
Product Details
- Part Number: WVA-71863HP+
- Manufacturer: Mini Circuits
- Description: E-Band Waveguide Power Amplifier from 71 to 86 GHz
General Parameters
- Type: Gain Block
- Configuration: Module with Connector, Waveguide
- Application: Radar, Backhaul
- Standards Supported: E Band
- Industry Application: Aerospace & Defense, Military, Test & Measurement, Wireless Infrastructure
- Frequency: 71 to 86 GHz
- Gain: 34 to 39 dB
- P1dB: 19.5 to 22.5 dBm
- P1dB: 0.089 to 0.17 W
- Grade: Commercial, Military
- Saturated Power: 22 to 24.5 dBm
- Saturated Power: 0.15 to 0.28 W
- Impedance: 50 Ohms
- Input Return Loss: 10 dB
- Output Return Loss: 15 dB
- Supply Voltage: 10 to 15 V
- Current Consumption: 500 to 1000 mA
- Operating Temperature: -40 °C to +60°C
- Storage Temperature: -40 °C to +85°C
- Waveguide: WR-12
- RoHS: Yes
