Mini-Circuits New Power Amplifiers to Build Out Your Bench

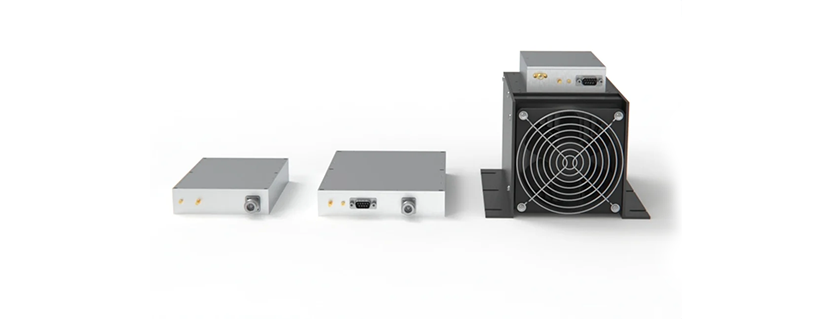

ZHL-Series, High Power Amplifiers, Growing Selection for Every Test Bench

Mini-Circuits’ ZHL-Series power amplifiers are a mainstay of every RF test lab, with over 75 models in stock spanning operating bands from 5 MHz to 18 GHz and power levels up to 300W. Mini-Circuits recently expanded the selection with 10 new models to offer even more functionality for your needs. All models are available from stock with and without a heatsink and provide outstanding reliability with built-in protections for demanding lab environments. Check out Mini-Circuits selection and add more power to your setup!

EXPLORE POWER AMPS

Key Features:

• 75+ models in stock and growing
• Operating bands from 5 MHz to 18 GHz
• Power levels up to 300W
• Rugged designs with built-in protections

LATEST RELEASES

ZHL-Series Power Amplifiers Model Name ZHL-10M1G01W0(X)+ Description Coaxial Power Amplifier with Heatsink, 1W, 22 dB Gain, SMA-F, 50Ω F Low 10 MHz F High 1 GHz

ZHL-10M1G01W1(X)+ Coaxial Power Amplifier with Heatsink, 1.3W, 34 dB Gain, SMA-F, 50Ω 10 MHz 1 GHz

ZHL-10M1G21W0(X)+ Coaxial Power Amplifier with Heatsink, 1W, 27 dB Gain, SMA-F, 50Ω 10 MHz 1.2 GHz

ZHL-10M2G0005(X)+ Coaxial HPA with Heatsink, 5W, 51 dB Gain, SMA-F, 50Ω 10 MHz 2 GHz

ZHL-10M2G0010(X)+ Coaxial HPA with Heatsink, 12W, 52 dB Gain, SMA-F, 50Ω 10 MHz 2 GHz

ZHL-10M2G0020(X)+ Coaxial HPA with Heatsink, 20W, 53 dB Gain, SMA-F, 50Ω 10 MHz 2 GHz

ZHL-20M2G7025(X)+ Coaxial HPA with Heatsink, 25W, 50 dB Gain, SMA-F, 50Ω 10 MHz 2.7 GHz

ZHL-0G62G5030(X)+ Coaxial HPA, 30W, 51 dB Gain, SMA-F, 50Ω 600 MHz 2.5 GHz

ZHL20M1G0100(X)+ High Power Amplifier, 52 dB Gain, 100W, SMA & N-Type, 50Ω 20 MHz 1 GHz

ZHL-2G018G010(X)+ High Power Amplifier, 48 dB Gain, 10W, SMA, 50Ω 2 GHz 18 GHz

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
