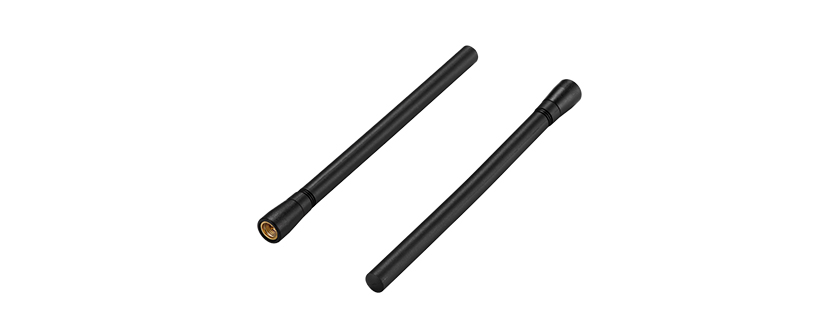

New Taoglas TG.13.5111 5G Sub 1 GHz Cellular / BLE (617-960 MHz) Terminal Mount Antenna with Fixed SMA(M) Plug Connector

• Terminal Mount Antenna
• Coverage: 5G Cellular Sub-1 GHz and BLE
• Dims: Ø10.7 x 135.9 mm
• Connector: Fixed SMA(M) Plug
• RoHS & Reach Compliant

Overview

TG.13 5G Cellular Sub-1 GHz Terminal Antenna

The Taoglas TG.13.5111 is a high-performance terminal mount antenna optimized for Sub-1 GHz wireless applications, covering 617-960 MHz to support a wide range of technologies including ISM, NB-IoT, LTE Cat-M1, LoRa, Wi-Fi HaLow, and private 900 MHz cellular networks. In addition, it provides support for 2.4 GHz Bluetooth^® Low Energy (BLE), enabling applications where Wi-Fi HaLow and Bluetooth coexist in industrial and IoT deployments.

With a compact form factor of Ø10.7 x 135.9 mm and a fixed SMA(M) plug connector, the TG.13.5111 is well suited for space-constrained designs that demand robust, reliable connectivity across diverse wireless standards.

Extensively tested on multiple ground plane sizes as well as in free space (see performance table), the TG.13.5111 demonstrates excellent efficiency, gain, and omnidirectional radiation patterns, ensuring consistent coverage across deployment environments. Its linear polarization and stable impedance of 50Ω further enhance integration flexibility.

Designed for long-term reliability, the antenna is IP65-rated for water resistance and fully RoHS and REACH compliant, making it a durable solution for challenging environments and industrial-grade IoT systems.

Typical Applications Include:

• Industrial IoT Devices
• Smart Cities Infrastructure
• Consumer IoT Products
• Precision Agriculture
• Point-of-Sale (POS) Terminals
• Emergency Services & Public Safety Networks

For more information or integration support, please contact your local Taoglas support team.

Technical Specification

Name	Value
Technology	External Antennas, Cellular
IP Rating	IP65
Impedance	50
Minimum Operating Temperature (℃)	-40
Maximum Operating Temperature (℃)	85
Mounting Style	Terminal
Termination Style	Connector
Connector Type	SMA
Length (mm)	10.7
Width (mm)	10.7
Height (mm)	135.5
Connector Body Style	Straight
Polarity	Linear
Frequency Range	617 MHz – 960 MHz
Connector Polarity	Normal
VSWR	3.0:1
Weight (g)	14.3
RoHS	Yes
Gain (Max)	4.97
