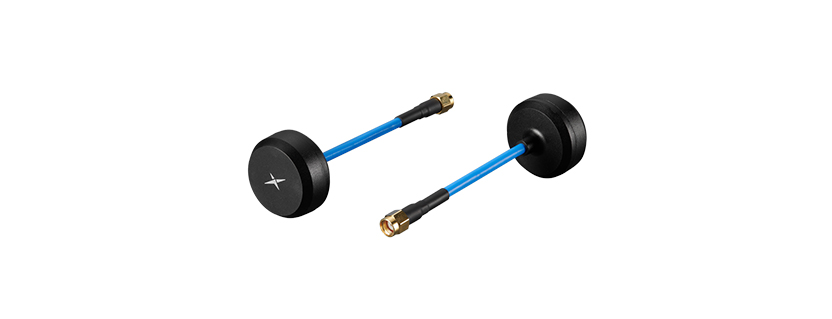

New Taoglas WCM.30 Wi-Fi/ISM (5-5.9 GHz) IP67 Connector Mount Antenna 83 mm RG-402 Cable with RP-SMA(M)ST Connector

• Covers 5-5.9 GHz Frequency Range
• Flexible and durable RG-402 Cable with RP-SMA Connector
• IP67 Waterproof Enclosure
• Perfect Axial Ratio
• Dimension: Ø34.5 x 108 mm
• RoHS & Reach Compliant

Overview

The Taoglas WCM.30 is a high-performance circularly polarized antenna specifically engineered for First-Person View (FPV) remote controlled drones and wireless video transmission systems. Designed to deliver stable, omni-directional coverage with right-hand circular polarization (RHCP), it ensures reliable, low-latency video and control links, even in dynamic flight environments.

The WCM.30 utilizes a precision-tuned design achieving over 80% efficiency and 4.8 dBi peak gain, minimizing signal fading and multipath interference—critical for real-time HD video streaming. Its robust RG-402 coaxial cable provides exceptional mechanical strength and flexibility, allowing the antenna to be bent, rotated, and fixed easily without performance degradation.

Built with a fully IP67 and UV-rated enclosure, the WCM.30 is resistant to dust, water, and UV exposure, making it ideal for outdoor and harsh environmental deployments.

As drone and wireless video technologies continue to evolve, the WCM.30’s versatility and durability make it suitable not only for FPV drones but also for autonomous robots, ground vehicles, and industrial IoT systems requiring high-efficiency, omnidirectional communication.

The antenna includes an RP-SMA connector as standard, ensuring easy integration with most FPV transmitters and receivers. For high-volume or specialized applications, custom connector types, cable lengths, and mounting options can be tailored upon request (subject to MOQ and NRE), contact your regional Taoglas customer support team for more information.

Technical Specification

Name	Value
Technology	External Antennas, ISM/LoRA, Wi-Fi®/Bluetooth®
Wi-Fi Bands	5-5.9 GHz
IP Rating	IP67
Impedance	50
Minimum Operating Temperature (℃)	-40
Maximum Operating Temperature (℃)	85
Mounting Style	Connector
Termination Style	Connector
Connector Type	RP-SMA
Length (mm)	34.5
Width (mm)	34.5
Height (mm)	108
Cable Type	RG-402
Connector Body Style	Straight
Polarity	RHCP
Frequency Range	5000 MHz – 5925 MHz
Connector Polarity	Reverse
Cable Length (mm)	83
VSWR	<2
Weight (g)	12.4
RoHS	Yes
Gain (Max)	4.8
