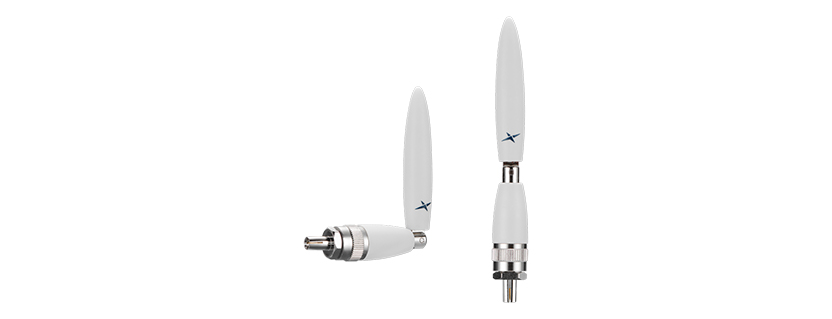

New Taoglas White Apex TG.66 Miniature 5G/4G Terminal Mount Monopole Antenna with TS9 Connector
- 600-6000 MHz Wideband 5G/4G Cellular Antenna
- Fantastic Efficiency Across all Bands
- Super Small Form Factor with Rotatable Hinged Design for Flexible Positioning
- Monopole Antenna Design Suitable for Small Ground Plane
- Omnidirectional Gain Patterns for Optimum Coverage
- Connector: TS9(M)
- Dimensions: 70.3 x Ø9.7 mm
- RoHS and REACH Compliant
Overview
Apex TG.66 Wideband Cellular (600-6000 MHz) Terminal Mount Antenna with TS9(M) Straight Connector
The Taoglas TG.66 is a hinged monopole antenna designed to cover all global 5G/4G frequencies between 600 MHz and 6 GHz. Despite its miniature size, just 79 x Ø9.7 mm, the TG.66 has omnidirectional radiation patterns and provides stable gain across the hemisphere. The TG.66 is supplied with a rotatable 90° hinged TS9 connector meaning can be covertly installed on all types of gateways and routers at straight or bent angles. The TG.66 performs excellently at 5G bands with efficiencies above 45% across the entire 5G/4G spectrum when positioned on the edge of a small ground plane of just 120 x 45 mm in size.
The TG.66 utilizes a sleek, robust PC enclosure, and its’ small size allows is to be mounted where space is at a premium. The TS9(M) connector’s hinge mechanism allows the antenna to be rotated into the preferred orientation which helps to avoid other antennas or objects. This also helps with isolation by pointing the antennas in different directions when used in MIMO systems or when other antennas are present on the same device. The TG.66 has been evolved from the highly successful TG.09 and is part of the ever-growing portfolio of 5G antennas offered by Taoglas.
Typical Applications include:
- Gateways and Routers
- IoT Sensors
- Public Safety and Security
- Point of Sales Terminals
- Smart Home Automation
- Robotics / Autonomous
The TG.66 comes with a rotatable 90° hinged TS9 connector as standard and this can be customized subject to MOQ and NRE, contact your regional Taoglas customer support team for more information.
Technical Specification
| Name | Value |
|---|---|
| Technology | External Antennas, Cellular |
| Impedance | 50 |
| Minimum Operating Temperature (℃) | -40 |
| Maximum Operating Temperature (℃) | 85 |
| Mounting Style | Terminal |
| Termination Style | Connector |
| Connector Type | TS-9 |
| Length (mm) | 9.7 |
| Width (mm) | 9.7 |
| Height (mm) | 79 |
| Connector Body Style | Hinged |
| Polarity | Linear |
| Frequency Range | 600 MHz – 6000 MHz |
| Connector Polarity | Normal |
| VSWR | 1.5:1 |
| Weight (g) | 11.3 |
| RoHS | Yes |
| Gain (Max) | 6.12 |
Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400
Courtesy of Taoglas
