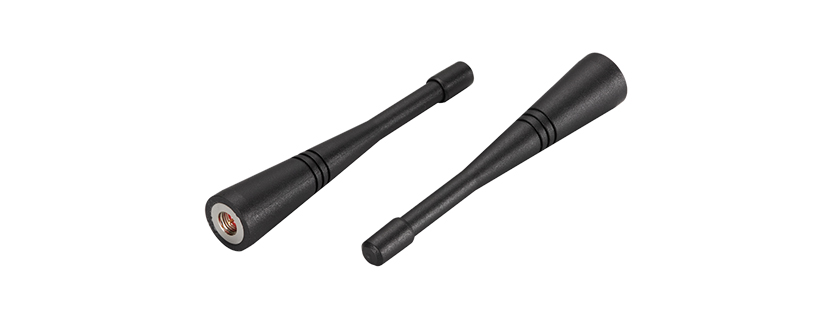

New Taoglas FW.79.SMA.A ISM/LoRa (700-930 MHz) Flexible Whip Antenna with SMA(M) Connector

• Flexible Terminal Mount Monopole Antenna
• Covering 700-930 MHz
• IP67 Rated Enclosure
• Dims: Ø15.5 x 90 mm
• Connector: SMA(M)
• RoHS & Reach Compliant

Overview

The Taoglas Meteor Series FW.79 is a high-performance, compact monopole antenna designed for ISM, NB-IoT, LTE-M, and LoRa applications across the 700–930 MHz frequency range. With a peak gain of up to 3.25 dBi and excellent efficiency, this antenna delivers robust, long-range wireless connectivity in space constrained designs.

Encased in a rugged, over molded polyurethane housing, the antenna is IP67-rated to withstand dust, water, and challenging environmental conditions, ensuring consistent performance in both indoor and outdoor deployments. Measuring only 90 mm in length and 15.5 mm in diameter, the FW.79 provides a discreet form factor without sacrificing on performance.

The antenna comes standard with an SMA(M) connector for quick and secure integration into gateways, routers, modems, or sensor devices. Its flexible, durable whip design resists impact and vibration, making it an ideal choice for field-deployed IoT and M2M applications.

Typical Applications:

• Smart metering and utilities (water, gas, electricity)
• Industrial telemetry and SCADA systems
• Smart agriculture (soil, and irrigation monitoring)
• Smart city infrastructure (lighting, parking, waste, air quality)
• Asset tracking and logistics (trailers, containers, bins)

For more information or sample, contact your regional Taoglas office.

Technical Specification

Name	Value
Technology	External Antennas, ISM/LoRA
IP Rating	IP67
Impedance	50
Minimum Operating Temperature (℃)	-40
Maximum Operating Temperature (℃)	85
Mounting Style	Terminal
Termination Style	Connector
Connector Type	SMA
Length (mm)	15.5
Width (mm)	15.5
Height (mm)	90
Connector Body Style	Straight
Polarity	Linear
Frequency Range	700 MHz – 930 MHz
Connector Polarity	Normal
VSWR	3.5:1
Weight (g)	11.4
RoHS	Yes
Gain (Max)	3.25

Get in touch for orders or any queries: sales@rfdesign.co.za / +27 21 555 8400

Courtesy of Taoglas
