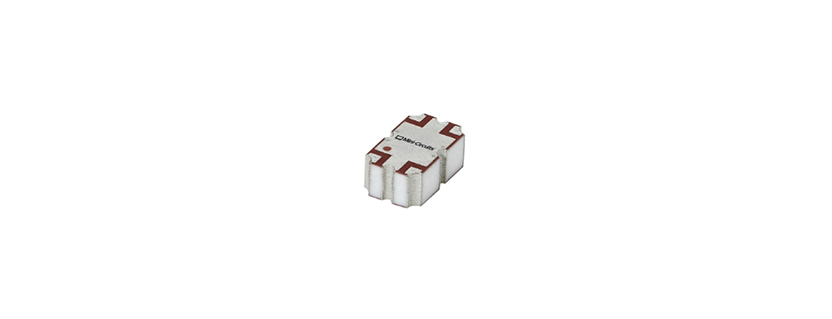

HPCJ-03-422+ 90 Degree Hybrid Coupler by Mini-Circuits

The HPCJ-03-422+ from Mini-Circuits is a 3 dB 90° Hybrid Splitter/Combiner that operates from 3200 to 4200 MHz. It has an insertion loss of 0.14 dB and provides an isolation of 26 dB. This splitter can handle an input power of up to 50 W and has a return loss of 24.5 dB. It has a phase unbalance of 2 degrees and an amplitude unbalance of 0.65-0.8 dB.

This HPCJ-03-422+ is available in a compact LTCC surface-mount package that measures 0.200 x 0.125 x 0.079 inches. This splitter/combiner is ideal for wireless infrastructure, 5G Base Stations in NR mid-band, satellite communications for C-band uplink/downlink, test & measurement, and radar systems applications.

Product Details

• Part Number: HPCJ-03-422+
• Manufacturer: Mini-Circuits
• Description: 90° Hybrid Splitter/Combiner from 3200 to 4200 MHz

General Parameters

• • Application: Radar, Base Station, 5G, Cellular, Satellite, Wireless Communication
  • Frequency: 3.2 to 4.2 GHz
  • Average Power: 50 W
  • Insertion Loss: 0.14 to 0.25 dB
  • Isolation: 20 to 26 dB
  • Coupling: 3 dB
  • Amplitude Balance: ±0.65 to 1.2 dB
  • Phase Balance: ±2 to 5 Degrees
  • Impedance: 50 Ohms
  • Return Loss: 18 to 24.5 dB
  • Package Type: Ceramic
  • Dimension: 0.2” x 0.125” x 0.079”
  • Operating Temperature: -55 to 125 Degree C
  • Storage Temperature: -55 to 125 Degree
  • RoHS: Yes
