What’s Quiet, Wide & Flat?

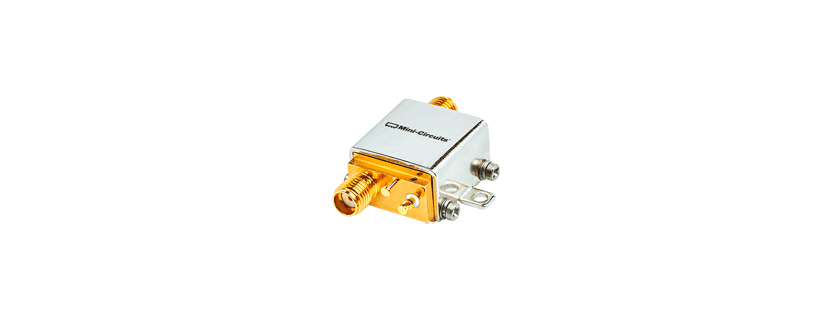

ZX60-SERIES, Quiet. Wide. Flat. Coaxial LNAs For Broadband Receivers, LO Chains, Test Setups & More.

Mini-Circuits’ ZX60-series of coaxial LNAs continues to expand with four new wideband modules covering C-Band, X-Band and Ku-Band operation. The ZX60-series features Mini-Circuits’ patented unibody housing construction, renowned for its ruggedness and compact size. With flat gain across their respective bands, low NF and additive phase noise, and excellent linearity, these new additions to the ZX60-series are well-suited to applications from 5G MIMO to satellite communications, test instrumentation, EW/ECM and more!

Explore ZX60-series

Key Features:

• Low noise and additive phase noise
• Flat gain over wide operating bandwidth
• Excellent linearity
• Rugged unibody connectorized housing

ZX60-Series LNAs

Model Name ZX60-5123LN+ Description Low Noise Amplifier, 1.4 dB NF, +29.5 dBm OIP3, SMA, 50Ω F Low 5.5 GHz F High 12.5 GHz

ZX60-5153LN+ Low Noise Amplifier, 1.5 dB NF, +28 dBm OIP3, SMA, 50Ω 5.5 GHz 15.5 GHz

ZX60-06183LPN+ Low Phase Noise Amplifier, -169 dBc/Hz APN @ 10 kHz offset, SMA, 50Ω 6 GHz 18 GHz

ZX60-06223LN+ Low Noise Amplifier, 2.8 dB NF, 22 dB Gain, +22.8 dBm OIP3, SMA, 50Ω 6 GHz 22 GHz
