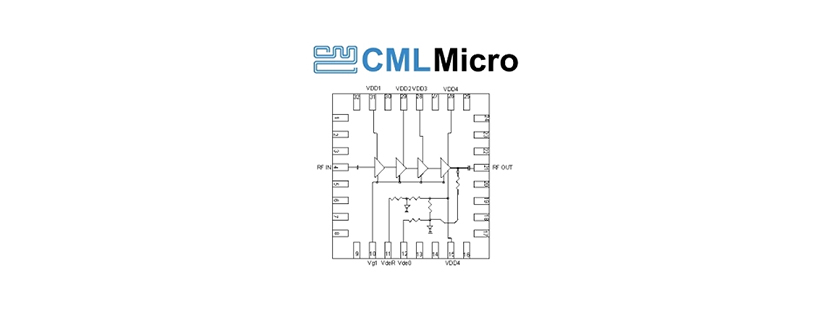

MMA-273336D-M5 RF Amplifier by CML Microcircuits
The MMA-273336D-M5 from CML Microsystems is a GaAs MMIC Power Amplifier (PA) that operates from 27 to 33 GHz. It is designed for use as a power-stage amplifier in microwave transmitters and is suitable for VSAT, point-to-point radio, and military applications. This PA delivers a P1dB output of 36 dBm (~4 W), with a gain of 22 dB and a gain flatness of ±3 dB. It has an IM3 of -36 dBc (at 20 dBm per tone) and a return loss of 10 dB at both input and output ports.
The MMA-273336D-M5 can handle an input power of up to 20 dBm and integrates an on-chip output power detector. It requires a 6 V DC supply and draws 2.2 A of quiescent current. This amplifier is available in a 5 × 5 mm QFN surface-mount package.
Product Details
- Part Number: MMA-273336D-M5
- Manufacturer: CML Microcircuits
- Description: 4 W GaAs MMIC Power Amplifier from 27 to 33 GHz
General Parameters
- Type: Power Amplifier
- Configuration: IC/MMIC/SMT
- Application: VSAT
- Industry Application: Broadcast, Military
- Frequency: 27 to 33 GHz
- Gain: 20 to 22 dB
- Gain Flatness: +/- 3 to 4 dB
- P1dB: 35 to 35.5 dBm
- Impedance: 50 Ohms
- Input Return Loss: 8 to 10 dB
- Output Return Loss: 8 to 10 dB
- Supply Voltage: 6 V
- Current Consumption: 1.5 to 3 A
- Package Type: Surface Mount
- Storage Temperature: -55 to 150 Degree C
- Note: Output P3dB: 36 to 36.5 dBm
