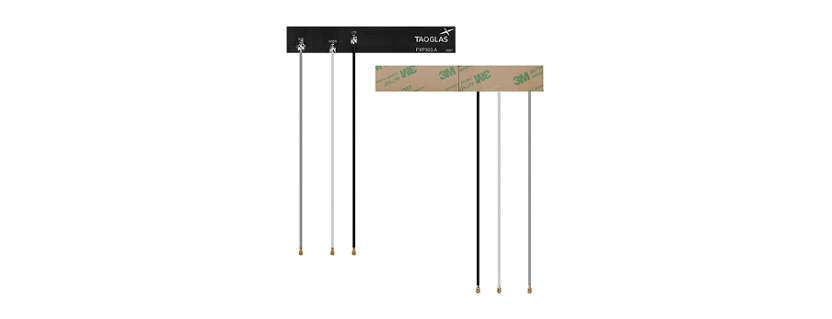

FXP301.A.001 Antenna by Taoglas

The FXP301.A.001 from Taoglas is a Antenna with Frequency 600 to 8000 MHz, Gain -6.70 to -3.60 dB, Power 5 W, Operating Temperature -40 to 85 Degree C, Storage Temperature -40 to 85 Degree C. Tags: PCB, Flexible. More details for FXP301.A.001 can be seen below.

Product Details

• Part Number: FXP301.A.001
• Manufacturer: Taoglas
• Description: Super Compact Flex PCB Combination Antenna (105x20mm) for Cellular and GNSS

General Parameters

• Type: PCB, Flexible
• Directionality: Omni-Directional
• Application: Telematics, Asset tracking, Agriculture, Healthcare, Wearables, UAV, Wireless Communication
• Polarization: Linear
• Standards: WiFi, GNSS, 3G, 5G NR, 4G/LTE, NB-IoT, CAT-M
• Frequency: 600 to 8000 MHz
• Gain: -6.70 to -3.60 dB
• Power: 5 W
• Efficiency: 21.4 to 43.7%
• Industry: Cellular, GPS/GNSS
• VSWR: 1.50:1, 2.00:1
• Mounting: Adhesive Mount, PCB Mount
• Impedance: 50 Ohms
• Connectors: I-PEX MHFI
• Multi Band: Yes
• Multi Port: Yes
• Cable Length: 150 mm
• Dimension: 105 x 20 x 0.24 mm
• Weight: 2.4 g
• Operating Temperature: -40 to 85 Degree C
• Tags: FXP30x Series
• Storage Temperature: -40 to 85 Degree C
• RoHS: Yes

Antennas – FXP30x Series
