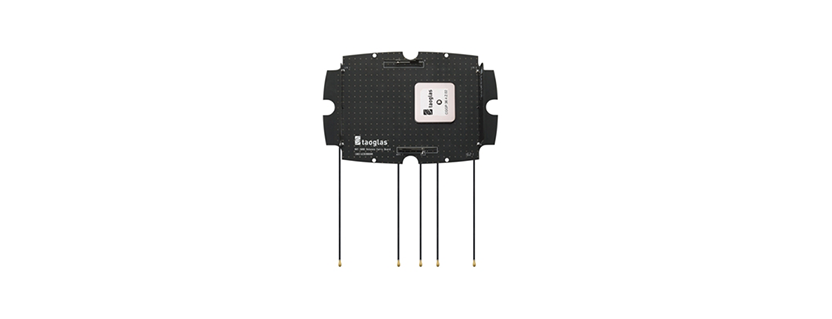

MAT.500B Antenna by Taoglas
The MAT.500B from Taoglas is a Antenna with Frequency 698 to 960 / 1710 to 2170 MHz / 2490 to 2690 MHz / 1575.42±1.023 MHz / 1602±5 MHz / 2.4 GHz / 5.8 GHz, Gain -5.93 to -1.2 dBi, Operating Temperature -40 to 85 Degree C, Storage Temperature -40 to 90 Degree C. Tags: Embedded. More details for MAT.500B can be seen below.
Product Details
- Part Number: MAT.500B
- Manufacturer: Taoglas
- Description: Embedded Antenna from 698 to 5800 MHz
General Parameters
- Active/Passive: Passive
- Type: Embedded
- Directionality: Omni-Directional
- Application: Telemetry, Asset tracking, Security Systems, Fleet management
- Polarization: RHCP, Linear
- Axial Ratio: 5.1 to 6.3 dB
- Standards: GPS, GLONASS, 4G/LTE, WiFi, 802.11n, 802.11ac
- Cable: ?1.37 Micro Coax. 68mm standard
- Frequency: 698 to 960 / 1710 to 2170 MHz / 2490 to 2690 MHz / 1575.42±1.023 MHz / 1602±5 MHz / 2.4 GHz / 5.8 GHz
- Gain: -5.93 to -1.2 dBi
- Efficiency: 25.54 to 75 %
- Industry: GPS/GNSS
- MIMO: Yes
- VSWR: 2.00:1, 2.20:1, 4.00:1
- Impedance: 50 Ohms
- Connectors: I-PEX
- Multi Band: Yes
- Multi Port: Yes
- Cable Length: 1.37mm
- Dimension: 157.32 x 103.19 x 30mm
- Weight: 66 Gram
- Operating Temperature: -40 to 85 Degree C
- Storage Temperature: -40 to 90 Degree C
- RoHS: Yes
