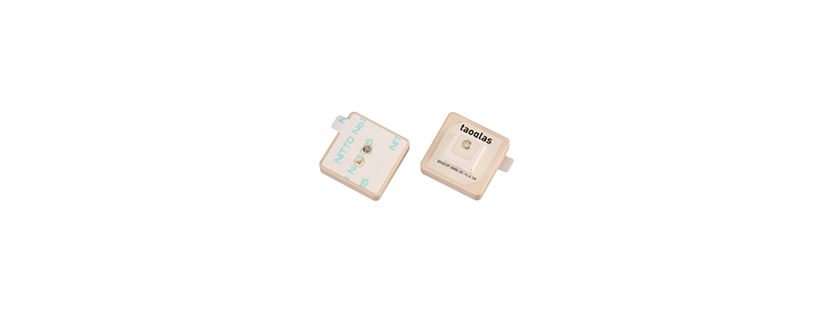

SDDCP.5900.25.10.A.08 Antenna by Taoglas
The SDDCP.5900.25.10.A.08 from Taoglas is a Antenna with Frequency 2320 to 2345 MHz, 5850 to 5925 MHz, Gain 3.5 to 5.4 dB (Peak gain), Operating Temperature -40 to 85 Degree C. Tags: PCB, Patch, Ceramic, Embedded. More details for SDDCP.5900.25.10.A.08 can be seen below.
Product Details
- Part Number: SDDCP.5900.25.10.A.08
- Manufacturer: Taoglas
- Description: Stacked SDARS & DSRC Patch Antenna for OEM Automotive Applications
General Parameters
- Type: PCB, Patch, Ceramic, Embedded
- Directionality: Omni-Directional
- Polarization: RHCP, LHCP
- Standards: SDARS, DSRC
- Frequency: 2320 to 2345 MHz, 5850 to 5925 MHz
- Gain: 3.5 to 5.4 dB (Peak gain)
- Efficiency: 68.5 to 80.3%
- Industry: Automotive, Broadcast
- Return Loss: -10 dB
- Mounting: Through Hole, Roof Mount, PCB Mount
- Impedance: 50 Ohms
- Multi Band: Yes
- Multi Port: No
- Dimension: 25 x 25 x 10.15 mm
- Weight: 13.9 g
- Operating Temperature: -40 to 85 Degree C
- RoHS: Yes
