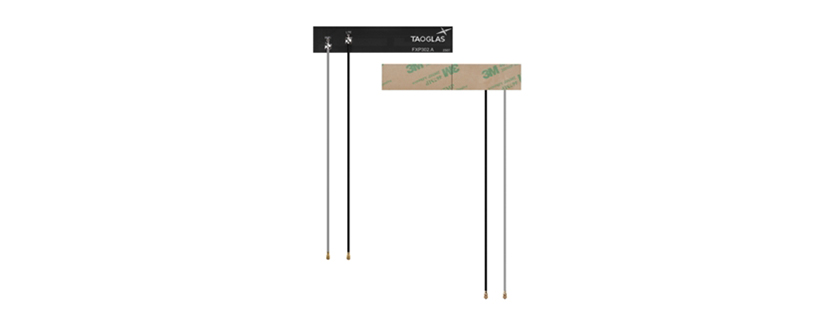

FXP302.A.001 Antenna by Taoglas
The FXP302.A.001 from Taoglas is a Antenna with Frequency 600 to 8000 MHz, Gain -5.91 to -3.45 dB, Power 5 W, Operating Temperature -40 to 85 Degree C, Storage Temperature -40 to 85 Degree C. Tags: PCB, Flexible. More details for FXP302.A.001 can be seen below.
Product Details
- Part Number: FXP302.A.001
- Manufacturer: Taoglas
- Description: Super Compact Flex PCB Combination Antenna (105 x 20 mm) for Cellular and Wi-Fi
General Parameters
- Type: PCB, Flexible
- Directionality: Omni-Directional
- Application: Telematics, Asset Tracking, Agriculture, Healthcare, Wearables, UAV, Wireless Communication
- Polarization: Linear
- Standards: WiFi, 3G, 5G NR, 4G/LTE, NB-IoT, CAT-M
- Frequency: 600 to 8000 MHz
- Gain: -5.91 to -3.45 dB
- Power: 5 W
- Efficiency: 20.2 to 45.2%
- Industry: Cellular
- Mounting: Adhesive Mount, PCB Mount
- Impedance: 50 Ohms
- Connectors: I-PEX MHFI
- Multi Band: Yes
- Multi Port: Yes
- Cable Length: 150 mm
- Dimensions: 105 x 20 x 0.24 mm
- Weight: 2.4 g
- Operating Temperature: -40 to 85 °C
- Storage Temperature: -40 to 85 °C
- Tags: FXP30x Series
- RoHS: Yes
