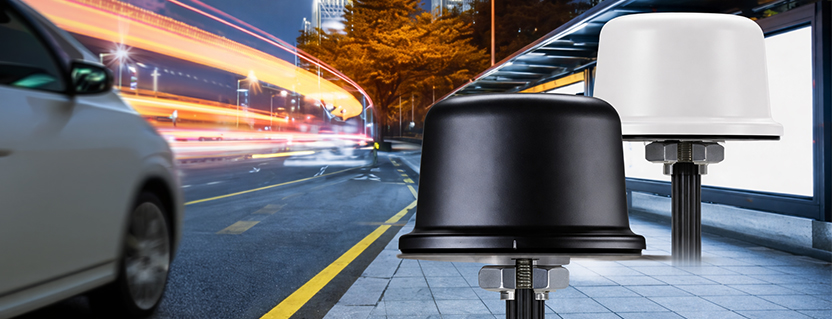

Taoglas Colosseum Series
The Taoglas Colosseum Series offers robust, high-performance antennas tailored for transportation, first responders, smart cities, and industrial IoT applications. The series includes two core models:
- The Colosseum X antennas: high-precision, multi-band GNSS (active/passive) antennas covering GPS, GLONASS, Galileo, BeiDou, and QZSS.
- The Colosseum Combination Antenna: a compact, low-profile solution that integrates 5G/4G MIMO, dual-band Wi-Fi®, and GNSS in a rugged, IP67-rated enclosure.
The Colosseum X models deliver uniform gain, strong multipath rejection, and stable phase centre for precise tracking—even in dense urban environments. The combination models ensure global connectivity, high efficiency across 600–6000 MHz, and legacy band fallback. Both models are designed for demanding mobile and fixed installations, with customizable cables and connectors for seamless integration.
Why Choose Colosseum Antennas?
- Unmatched Signal Accuracy: Superior GNSS precision and multipath rejection for reliable location tracking in challenging environments.
- All-in-One Connectivity: Combines 5G/4G, Wi-Fi®, and GNSS in a space-saving, waterproof design ideal for telematics and mobile systems.
- Engineered for Performance: High isolation, low-loss cables, and rugged construction ensure strong signal integrity and long-term durability.
Key Specifications
| Antennas: | 5G/4G cellular – 600-6000 MHz (MA841 & MA850) |
| Wi-Fi® – 2.4/5.8GHz (MA850 only) | |
| GNSS | |
| XAHP.60 | Multiband L1/L2/L5 L-Band (Active) |
| XAHP.50 | Multiband L1/L2/L5/L6 (Active) |
| QHA.50 | Multiband L1/L2/L5/L6 (Passive) |
| MA850 | L1 |
| Dimensions: | Height | Length | Width |
| 57 mm | 94 mm | 94 mm | |
| 2.24″ | 3.7″ | 3.7″ |
Cables*: RG-174**
Connectors*: SMA(M)
*Cables and connectors are fully customisable upon request
** MA841 – RG-316
Features
• High Precision GNSS models
• Cellular, GNSS, & Wi-Fi® combination models
• Screw mount permanent mount
• IP67 rated enclosure
• Excellent out-of-band rejection
Benefits
• High-precision GNSS for accurate tracking
• All-in-one wireless connectivity solution
• Compact design saves valuable space
• Rugged IP67 housing withstands conditions
• Customizable for system integration flexibility
Typical Applications
• Automotive vehicle tracking and telematics
• Precision positioning for robotics
• Digital signage
• HD Video over LTE
• First Responder and Emergency Services
Courtesy of Taoglas
