Description

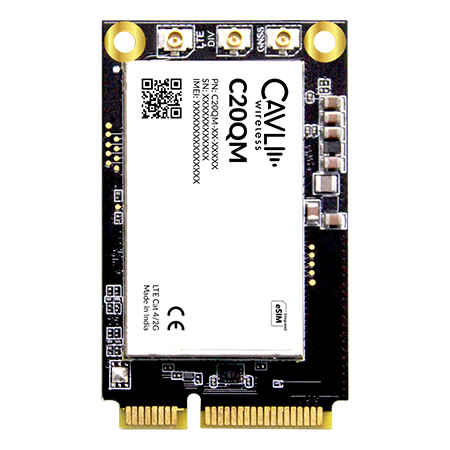

Cavli is proud to present the C20QM, a series of LTE Cat 4 modules, with emphasis on data speed/bandwidth, that support 3GPP release 10. Engineered in LGA form factor, it offers pin compatibility with the C10GS LTE Cat 1/Cat 4 and C10QM modules, allowing for flexible migration and interoperability. The module encompasses integrated GNSS, with Qualcomm® IZat™ location technology Gen8C Lite, providing precise and reliable positioning through GPS, GLONASS, BeiDou/Compass, Galileo, and QZSS.
The C20QM supports VoLTE and SMS over IMS/SG/CS, along with a plethora of internet protocols and industry-standard interfaces. The module comes in two variants: C20QM-EA for the Europe and Asia markets, and C20QM-NA for the North America market. Additionally, with an optional integrated eSIM powered by the Cavli Hubble platform, it offers global connectivity, reducing time to market. The C20QM module is designed for IoT and M2M applications, such as asset tracking, e-mobility, data loggers, fleet management, and environmental monitoring.
Specifications:
Cellular Bands Supported:
EMEA / APAC : LTE – B1 / B3 / B5 / B8 / B20 / B40 | GSM – 900/1800 MHz
NA : LTE – B2 / B4 / B5 / B12 / B13 / B25 / B26 / B66 | GSM – 900 / 1800 MHz
Supported Location Services: GPS / GLONASS / BeiDou / Galileo , QZSS Capable
OS: Yocto Linux (Kernel 4.14)
Memory: 256/512 MB RAM / 256/512 MB Flash
Cellular Connectivity Download & Uplink Speed (* Peak Values)
LTE Cat 4 : 150 Mbps (DL), 50 Mbps (UL)
2G : 236.8 Kbps (DL), 236.8 Kbps (UL)
Interfaces:
9xGPIO*, 1xUSB HS , 3xUART, 1xSDH , 2xADC**, 1xPCM*, 1xUSIM, 1xI2C*, 1xSPI*, 1xSDC, 1xSGMII, 1xJTAG, 1xLCD**, 1xMAIN_ANT, 1xGNSS_ANT
