- 4 x 2G/3G/4G MIMO Antenna
- (698~960MHz, 1710~2170MHz,2300~2700MHz )
- 4 x Wi-Fi 2.4GHz/5GHz MIMO Antenna
- 1 x GPS/GLONASS/BeiDou Antenna
- (1561/1575.42/1602MHz )
- Front End GNSS SAW Filter
- IP67 Rated Waterproof
- High Efficiency / Peak Gain Outdoor Antenna
- SMA (M) connector ( Fakra optional )
- Cable: 300mm RG-316 / RG-174
- Connectors: SMA(M) / RP-SMA(M)
- RoHS Compliant

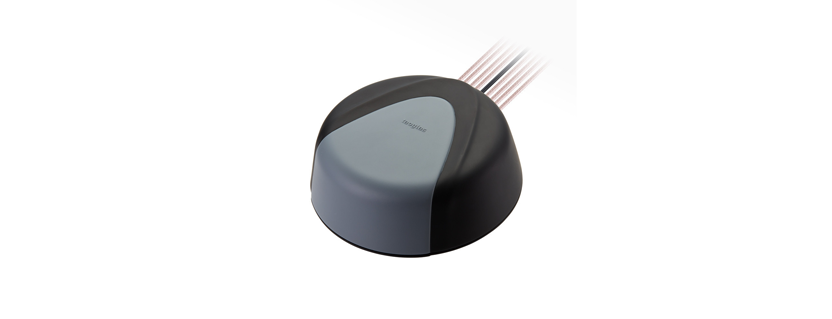

The Taoglas Synergy MA1509 is a 9-in-1 next generation permanent mount antenna for vehicle roof applications. It has a fully IP67 rated waterproof robust ABS enclosure and base. The 9 antennas inside support frequency bands in LTE (2G/3G/4G), GPS/GLONASS/BeiDou, Wi-Fi (2.4G/5G). This outstanding patent pending antenna delivers powerful MIMO antenna technology for LTE, Wi-Fi 2.4/5.8GHz 802.11n and the emerging 802.11ac, and an optimized GPS/GLONASS/BeiDou patch antenna for location. The LTE antennas also include backward compatibility to work at most worldwide 2G and 3G bands.
Typical Applications:
– Next Generation OEM Automotive Connectivity
– Multimedia, Navigation and Telematics Systems
– V2V, V2X and Fleet Management Applications
– Real-time HD Video Streaming
– First Net Responder Routers
The MA1509 is ideal for applications that require highly sophisticated antennas for real time streaming applications that demand high speed video uplink and downlink into the cabin of the vehicle. These challenges are resolved by the highly efficient, high gain MIMO antennas, with high isolation, all of which is necessary to achieve the required signal to noise ratio and throughput.
The MA1509 can also be customized for your particular wireless application and frequency band, subject to NRE and MOQ. There are 8x 300mm RG-316 cables, terminating in SMA(M) connectors for LTE MIMO 4X4, and RP SMA(M) for Wi-Fi MIMO 4X4. There is a 300mm RG-174 cable for GNSS terminating in an SMA(M) connector.
All cable lengths and connector types are customizable. The Synergy MA1509 can be supplied with low loss CFD-200 cable extensions for longer cable runs. Contact your regional Taoglas customer services team for details and support.
Courtesy of Taoglas : MA1509 Synergy 9-in-1 GNSS, 4*LTE & 4*Wi-Fi
