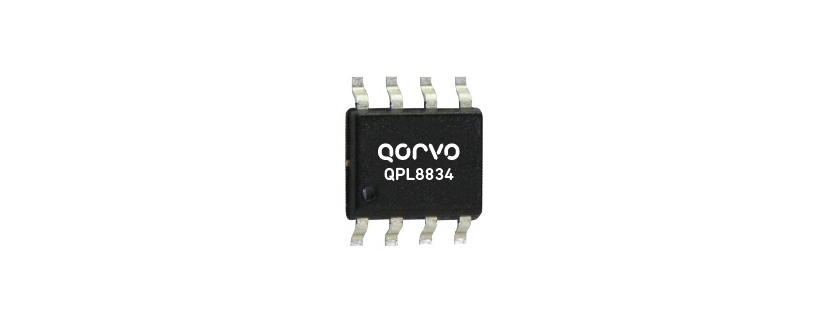

QPL8834 RF Amplifier by Qorvo

The QPL8834 from Qorvo is a RF Amplifier with Frequency 5 to 1218 MHz, Gain 12 dB, Gain Flatness ± 0.5 dB, Noise Figure 4 dB, P1dB 24 dBm. Tags: Surface Mount, CATV Amplifier. More details for QPL8834 can be seen below.

Product Details

• Part Number: QPL8834
• Manufacturer: Qorvo
• Description: 24 dBm CATV Amplifier from 5 to 1218 MHz

General Parameters

• Type: CATV Amplifier
• Configuration: IC/MMIC/SMT
• Frequency: 5 to 1218 MHz
• Gain: 12 dB
• Gain Flatness: ± 0.5 dB
• Noise Figure: 4 dB
• P1dB: 24 dBm
• P1dB: 0.25 W
• IP3: 42 dBm
• Power Consumption: 1.4 W
• Impedance: 75 Ohms
• Return Loss: 18 dB
• Supply Voltage: 5 V
• Current Consumption: 255 to 280 mA
• Transistor Technology: pHEMT GaAs
• Package Type: Surface Mount
• Package: 8-Pin SOIC Package
• Operating Temperature: -40 to 85 Degree C
• Storage Temperature: -40 to 150 Degree C
