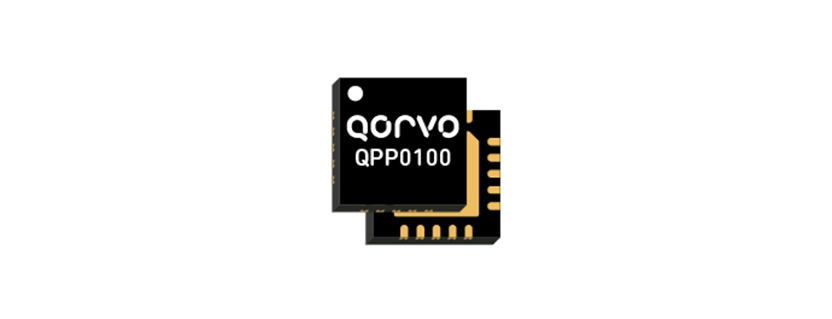

QPP0100 Limiter by Qorvo
The QPP0100 from Qorvo is an X-Band VPIN Limiter that operates from 8.0 to 11.5 GHz. It can handle a peak input power of 100 W and has an insertion loss of less than 1 dB. The limiter has a flat leakage under 21 dBm, a spike leakage of less than 22 dBm, and has a recovery time of less than 200 ns. It is a passive device (no DC bias is required) and is internally matched to 50-ohms. This RoHS-complaint limiter is available in an over-molded surface-mount QFN package that measures 4.0 × 4.0 × 0.85 mm. It is designed to operate in the X-band and is suitable for radar, commercial, and defense-related applications.
Product Details
- Part Number: QPP0100
- Manufacturer: Qorvo
- Description: 100 W X-band Limiter from 8 to 11.5 GHz
General Parameters
- Type: VPIN Diode
- Frequency: 8 to 11.5 GHz
- Flat Leakage: 21 dBm
- Peak Input Power: 50 dBm
- Peak Input Power: 100 W
- Insertion Loss: 1 dB
- Application: Radar
- Spike_Leakage: 22 dBm
- Recovery time: 200 ns
- Impedance: 50 Ohms
- Grade: Commercial, Military
- Package Type: Surface Mount
- Dimension: 4.0 x 4.0 x 0.85 mm
- RoHS: Yes
- Note: Package: Plastic Over-Molded QFN
