C09-0R430 Directional Coupler by Marki Microwave

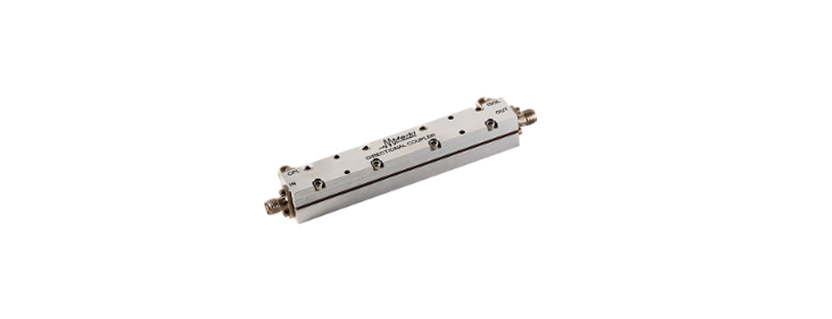

The C09-0R430 from Marki Microwave is a Directional Coupler that operates from 450 MHz to 30 GHz. This 9 dB coupler has an insertion loss of less than 2.6 dB and directivity of more than 20 dB. It has an amplitude flatness of ±0.7. The coupler is available in a module that measures 5.60 x 0.41 x 0.55 inches with 2.92 mm (female) connectors.

Product Details

• Part Number: C09-0R430
• Manufacturer: Marki Microwave
• Description: 9 dB Directional Coupler from 450 MHz to 30 GHz

General Parameters

• Frequency: 450 MHz to 30 GHz
• Coupling: 9 dB
• Amplitude Flatness: ±0.7 to ±1.4 dB
• Directivity: 12 to 20 dB
• Insertion Loss: 1.3 to 2.6 dB
• Impedance: 50 Ohms
• VSWR: 1.15:1 to 1.80:1
• Package Type: Module with Connectors
• Connector: 2.92 mm, 2.92 mm – Female
• Dimension: 5.6 x 0.410 x 0.55 in.
• Weight: 90 g
• RoHS: Yes
• Grade: Commercial

Courtesy of Marki Microwave
