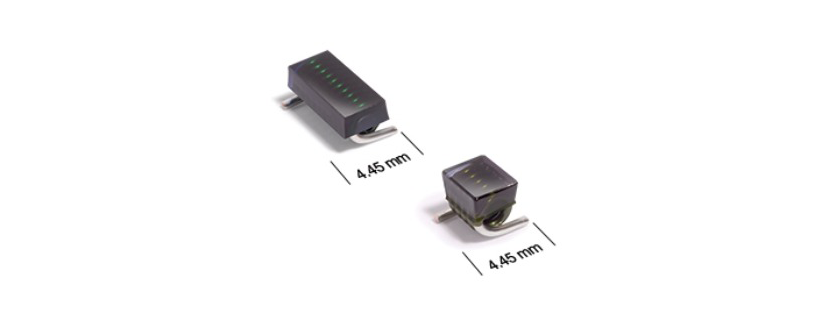

A01TKL_ RF Inductor by Coilcraft

The A01TKL_ from Coilcraft is a RF Inductor with Inductance 0.0025 µH, DC Resistance 1.1 mOhms, DC Current 4 A, Self Resonant Frequency 12.5 GHz, Operating Temperature -40 to 125 Degree C. Tags: Wire Wound Inductor. More details for A01TKL_ can be seen below.

Product Details

• Part Number: A01TKL_
• Manufacturer: Coilcraft
• Description: 12.5 GHz (SRF), Mini Air Core Inductor with 2.5 nH

General Parameters

• Inductance: 0.0025 µH
• DC Resistance: 1.1 mOhms
• DC Current: 4 A
• Dimension: 3.94 x 4.45 x 3.15 mm (L x W x T)
• Self Resonant Frequency: 12.5 GHz
• Mounting: Leaded
• Length: 3.94 mm
• Width: 4.45 mm
• Thickness: 3.15 mm
• RoHS: Yes
• Type: Wire Wound Inductor
• Operating Temperature: -40 to 125 Degree C
• Quality Factor: 145
• Storage Temperature: -40 to 140 Degree C
• Weight: 31 mg
