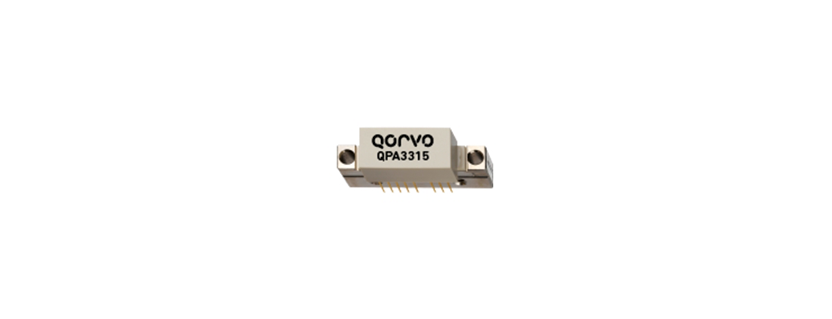

QPA3315 RF Amplifier by Qorvo
The QPA3315 from Qorvo is a Hybrid Power Doubler Amplifier that operates from 45 MHz to 1795 MHz. It provides a gain of 23 dB with excellent linearity, low noise, and optimal reliability. This amplifier is manufactured using GaAs and GaN dies, requires a DC supply from 24 to 34 V, and consumes less than 530 mA of current. It allows users to externally adjust the DC current and supply voltage over a range of output levels to ensure the right balance of optimum distortion and power consumption. The amplifier is available in a module and is ideal for DOCSIS 4.0 amplifiers and DOCSIS 4.0 CATV node applications.
Product Details
- Part Number: QPA3315
- Manufacturer: Qorvo
- Description: GaAs/GaN Hybrid DOCSIS 4.0 Power Doubler Amplifier from 45 to 1795 MHz
General Parameters
- Type: Power Amplifier
- Frequency: 45 to 1795 MHz
- Gain: 23 dB
- Sub-Category: Hybrid Amplifier, GaN Amplifier
- Supply Voltage: 24 to 34 V
- Current Consumption: 400 to 530 mA
- Transistor Technology: GaAs/GaN
- Package Type: Through Hole
- RoHS: Yes
