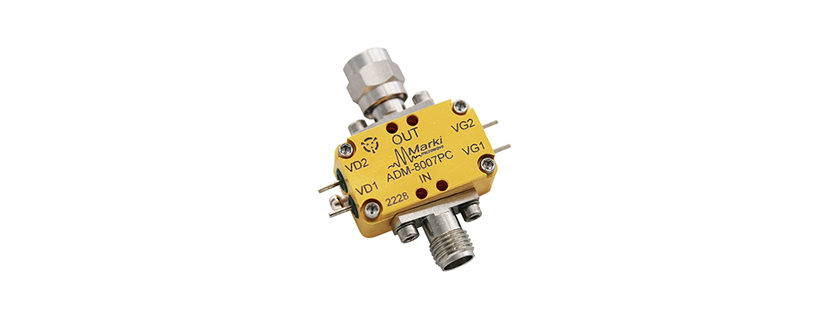

ADM1-8007PC RF Amplifier by Marki Microwave
The ADM1-8007PC from Marki Microwave is a RF Amplifier with Frequency 2 to 40 GHz, Small Signal Gain 22 dB, Noise Figure 3.3 dB, P1dB 21 dBm, P1dB 0.12 W. Tags: Driver Amplifier, Low Noise Amplifier. More details for ADM1-8007PC can be seen below.
Product Details
- Part Number: ADM1-8007PC
- Manufacturer: Marki Microwave
- Description: Low Noise Driver Amplifier from 2 to 40 GHz
General Parameters
- Type: Driver Amplifier, Low Noise Amplifier
- Configuration: Module with Connector
- Standards Supported: 5G
- Industry Application: Cellular, Radar, SATCOM, Test & Measurement
- Frequency: 2 to 40 GHz
- Small Signal Gain: 22 dB
- Noise Figure: 3.3 dB
- P1dB: 21 dBm
- P1dB: 0.12 W
- IP3: 5 to 9 dBm (Input), 25 to 30 dBm (Output)
- Saturated Power: 20 to 22 dBm
- Saturated Power: 0.1 to 0.15 W
- Impedance: 50 Ohms
- Reverse Isolation: 55 dB
- Sub-Category: Distributed Amplifier
- Input Return Loss: 15 dB
- Output Return Loss: 15 dB
- Supply Voltage: 3 to 6 V
- Current Consumption: 122 to 253 mA
- Operating Temperature: -40 to 85 Degree C
- Storage Temperature: -65 to 125 Degree C
- RoHS: Yes
